| US$1,000.00-8,000.00 | 1 SET (MOQ) |

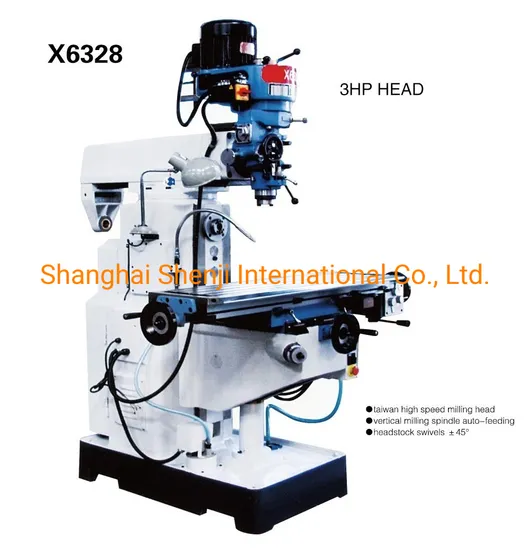

| Specification | X6328 | X6328B |
| Spindle taper | ISO40(V) ISO40(H) | ISO40(V) ISO40(H) |
| Max.drilling diameter | 30mm | 50mm. 30mm |
| Distance from spindle to table | 100-480mm | 90-470mm |
| Distance from horizontal spindle to table | 0-350mm | 0-380mm |
| Distance from spindle to column | 200-700mm | 200-700mm |
| Spindle speeds | (16)60-4540r.p.m(V) (12)40-1300r.p.m(H) | (16)80-5440r.p.m(V)(12)48-1560r.p.m(H) |
| Spindle travel | 127mm | 120mm |
| Feeding of quill | (3steps)0.04 0.08 0.15 | (3steps)0.04 0.08 0.15 |
| Max drilling capacity of auto-feeding | 14mm | 14mm |
| Head movement(left/right) | 45degrees | 45degrees |
| Table size | 1200x280mm | 1270x280mm |
| Table travel(horizontal/cross/vertical) | 680x300x380mm | 700x300x380mm |
| Feeding range of longitudinal travel | (8)24-720mm/min | (8)24-420mm/min |
| X.Y-axis rapid feed speed | 1180mm/min for Only X | 1080mm/min |
| Z-axis rapid feed speed | | 420mm/min |
| Z-axis motor power | | 750w |
| Max weight of workpiece | 280kg | 350kg |
| T-slot number /width/distance | 3/14mm/63mm | 3/14mm/70mm |
| Horse power for main motor | 2.25KW(V)2.2KW(H) | 2.25KW/2.2KW |
| X axis driving motor | 370W | 750W |
| Overall dimension | 1660x1340x2150mm | 1700x1600x2300mm |
| N.W./G.W. | 1250/1350kg | 1660/1760kg |
