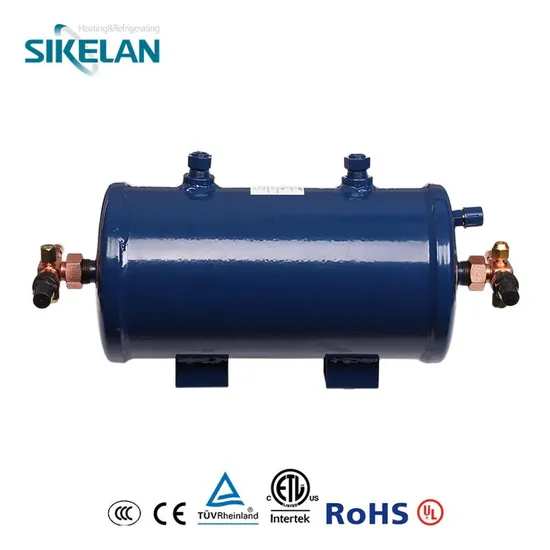

Vertical/Horizontal Easy to Install Lubricating Oil Cooling Refrigeration Oil Receiver

Product Description

Product Description SIKELAN oil receivers are used in "low and high pressure oil control systems". Due to system design, loading and defrosting cycle, the changing oil mass can be send back by oil separator, thus, a safety oil receiver is required for the operation of oil control system. In the oil receiver, any refrigerant trapped within the oil is boiled-off and the oil is cooled and kept available.
SIKELAN oil receivers are normally equipped with sight glasses with float ball level indicators, for upper and lower level indication, and with two shut off valves, the top valve receives valve from oil separator, and the bottom valve sends oil to the oil regulator.
Features:
- Max. Allowable operating pressure: 3.0Mpa
- Refrigerant: suitable with HFC & HCFC Refrigerants and associated oil (R134A, R404A, R507, R407A, R407C, R22 etc)
- SIKELAN oil receivers are CE listed.
SIKELAN oil receivers are supplied with:
- Two/Three sight glasses with level indicator balls inside, to check the oil level in the receiver. These glassed arealready screwed on the vessel.
- Two rotalock valves to easy connect oil fill and oil drain. These glasses are not mounted on the receiver but are supplied in the package, completed by the proper gaskets, The customer can assemble the rotalock valves on thereceiver according to his preferred working position.
- A 3/8'' SAE Flare connection on the top of the receiver to allow the assembling of a pressure differential check valve. Pressure difterential check valve is not sunplied with receiver: if it's necessarv to maintain a positive differential pressure between the receiver and the compressor crankcase the customer can select SIKELAN Pressure differential check valve. Screw the differential valve onto the 3/8'' SAE connection, remember to use PTFE gasket between receiver and valve, The receiver body is manufactured from steel pipe of adequate thickness. Top and botom are also made from carbon steel.
Our Advantages
Product Parameters

MODEL	INLET & OUTLET(IN)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	Sight Glass QTY	Oil Storage Volume(L)
SPLC-Y6	3/8	338	94	150	165	-	-	2	6
SPLC-Y8	3/8	438	109	220	165	-	-	2	8
SPLC-Y10	3/8	548	131	285	165	-	-	2	10
SPLC-Y12	3/8	638	139	360	165	-	-	2	12
SPLC-Y14	1/2	738	110	518	165	259	-	3	14
SPLC-Y19	1/2	580	140	300	219	-	-	2	19
SPLC-Y23	5/8	700	140	420	219	210	-	3	23
SPLC-Y10CL	3/8,1/2	548	144	260	165	90	208	2	10
SPLC-Y20CL	3/8,5/8	660	180	300	219	130	200	2	20

→ More Filters Please Contact Us!
Company Profile

Certifications With abundant technique force,we have our own researching, developing, manufacturing, inspecting and testingcenters, and imported the international advanced high-tech equipments. Our company has passed the ISO9001,ISO14001,OHS18001 international management system certificates. The products have got UL,ETL,CE,CB,and CCC certificates. Our products are not only selling strongly in more than 30 provincesand municipality,but also largely exporting to Europe,America,Australia,Middle East, Africa and South Asia. We have won an excellent reputation from the customers and friends by our product quality,price versus performance ratio and service.
FAQ Q1: Are you a manufacturer or trader?
A1: Zhejiang Maidi Refrigeration Technology Co., Ltd. is a Hi-tech enterprise. We own the standard plant and office building which covering 21, 000 square meters. With abundant technique force, we have our own researching, developing, manufacturing, inspecting and testing centers, and imported the international advanced equipments.
Q2: How to match sikelan filter to refrigeration?
A2: We have a professional team of engineers who provide technical support and online guidance on product installation and replacement.
Q3: How do you ensure quality?
A3: We have a dedicated product research and testing center with authoritative quality management system certification: ISO9001/ISO14001/OHS18001.
Q4:What's sikelan filter usage scenario?
Q4:Our product could use in refrigerators, air conditioners, and cold storage room.
Q5: How much does a refrigeration part cost?
A5: Factory price for you, not cheapest but the competitive price with good quality.
Q6:What certifications do sikelan have?
A6:We have UL, CCC, CE, CB, ETL, TUV, RoHS certifications in compressor.

---
