Large Hydraulic Surface Grinding Machine My4080 Surface Grinding Machine

Product Description

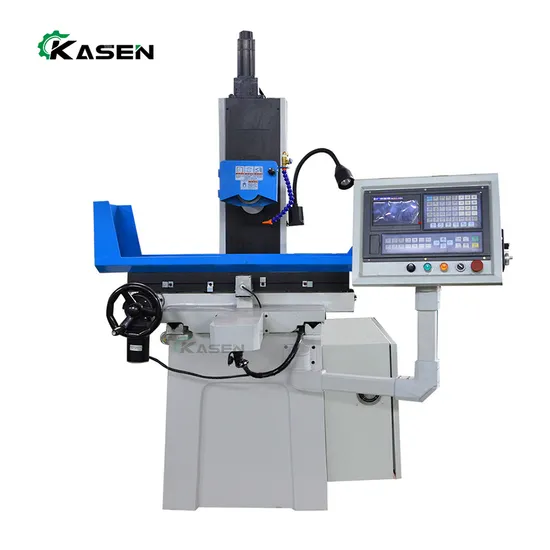

High quality surface grinding machine MY4080 Manual Surface Grinder
Product Description
Main performance characteristics: 1. The structure of the machine tool is reasonable, large machine tool bed weight, excellent stability, using the cross saddle structure, good rigidity, has the advantages of beautiful appearance and convenient operation. 2. Horizontal movement of working table (before and after) by servo motor drive, precision ball screw drive, to ensure accuracy,accurate positioning, in accordance with the procedures of automatic feeding, automatically and fast forward and rewind functions. 3. Working table vertical (or so) movement, the use of a V a flat guide, and the artificial precision shovel flowers, the use of hydraulic transmission, stable operation. 4. The grinding head up and down movement driven by a servo motor, which can achieve precise positioning accuracy, automatic feed and fast lifting function. 5. The Guangzhou CNC system GSK96 and two axis NC, according to the actual processing conditions free programming, with pulse wheel, X and Z axis feed can be free to switch freely. 6. Machine adopts full enclosed casing, can completely cover the whole of the working area, effectively prevent the splash of the cooling liquid and iron filings, and according to the requirements of clients connected ceiling spray dust removal device.
technical parameters:

Specifications					Units	MY4080
workbench	Worktable size (L * W)				mm	800×400
	Max. travel of table				mm	900×480
	Table T slot (slot number x slot width)				mm	3×14
Grinding head	The grinding wheel size (o. d * w * i. d.)				mm	Φ355×40×Φ127
	Distance spindle center line to working table				mm	600
	Grinding wheel speed			50HZ	r/min	1450
				60HZ	r/min	1680
The amount of feed	Table longitudinal (left and right)0 speed				m/min	3-25
	Transverse(front and rear) feed handwheel feed		Continuous (stepless)		mm/min	240
			Intermittent (stepless)		mm/times	0-8
			Handwheel per turn		mm	5.0
			Handwheel per lattice		mm	0.02
	The vertical (up and down) feed handwheel feed		Handwheel per turn		mm	0.8(1.0)
			Handwheel per lattice		mm	0.01
	Grinding head up and down is fast lifting speed (approximate value)				mm/min	1000
Motor power		Spindle motor			Kw*P	4*4
		Cooling motor			W	125
		Elevator motor			W	180
		Hydraulic motor			KW*P	2.2*6
working accuracy	The process surface of the base level of the parallel degree				mm	300:0.005
	Surface roughness				μm	Ra0.4
Machine weight		Net weight			kg	2800
		Gross weight			kg	3200
External size (L * w * h)					mm	2550×1650×2200

Service support
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.
1.Warranty The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual. 2.Quick Response Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most. 3.Online Technical Support
On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions. 4.Overseas Commissioning and Installation This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian

---
