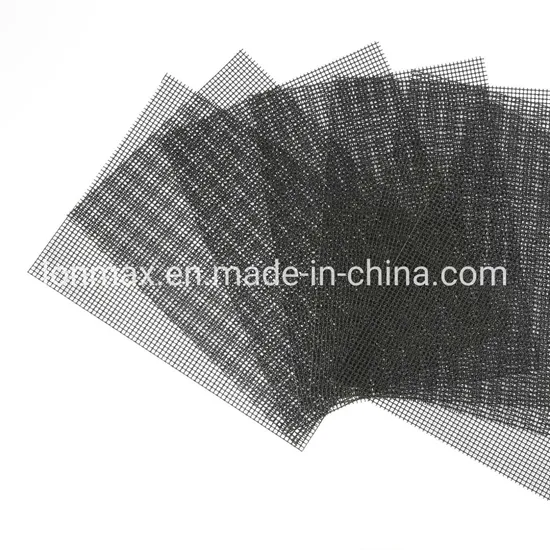

PTFE Anti Heat Food Grade Baking Liner

Product Description

Product Parameters Selecting fine glass fiber or Kevlar as basic weaving material, processed with imported advanced weaving machine, and coated with excellent PTFE resin to make it into various PTFE fiberglass high temperature resistance cloth in different thickness and widths.

Item No	Mesh Size	Material	Thickness	Weight	Resistance	Max Width	Tensile Strength
W001	1x1mm	fiberglass	0.5mm	390g/m²	-70-260° C	4000mm	1600/1500N/5cm
W002	2x2mm	fiberglass	0.7mm	450g/m²	-70-260° C	4000mm	2200/1500N/5cm
W003	4x4mm	fiberglass	1.0mm	500g/m²	-70-260° C	4000mm	2100/1500N/5cm
W004	4x4mm	fiberglass	1.0mm	480g/m²	-70-260° C	4000mm	2100/1500N/5cm
W007	4x4mm	fiberglass+kevlar	1.2mm	560g/m²	-70-260° C	4000mm	3300/2800N/5cm
W008	4x4mm	fiberglass	1.0mm	570g/m²	-70-260° C	4000mm	2800/1580N/5cm
W010	4x4mm	kevlar	1.0mm	460g/m²	-70-260° C	4000mm	3500/3300N/5cm
W012	4x4mm	fiberglass	1.0mm	580g/m²	-70-260° C	4000mm	2800/1500N/5cm
W013	10x10mm	fiberglass	1.0mm	450g/m²	-70-260° C	4000mm	1100/1000N/5cm
W014	0.5x1mm	fiberglass	0.5mm	420g/m²	-70-260° C	4000mm	2200/1500N/5cm
W015	2x2.5mm	fiberglass	0.9mm	470g/m²	-70-260° C	3000mm	2200/1500N/5cm

Detailed Photos

Company Profile
Our Advantages We owe our own factory and export company,save the costs from the origin.
Meanwhile,we have a special R&D team,can customize your requirements properly.
Feature:
1) High temperature resistance - it can continuously work under -70 to 260C
2) Permeability - it can avoid wasting heat and improve drying efficiency for it's permeability
3) Chemical resistance - it can resist all most of chemical medicines
4) Adherence resistance - it can easily remove all kinds of adhesives such as resin, paint and chemical medicine
5) Good flex fatigue resistance - it has high tensile strength and excellent flex fatigue resistance, It's better for small wheels

Exhibition
Packaging & Shipping

---
