Product Details
Product Description
Product Description

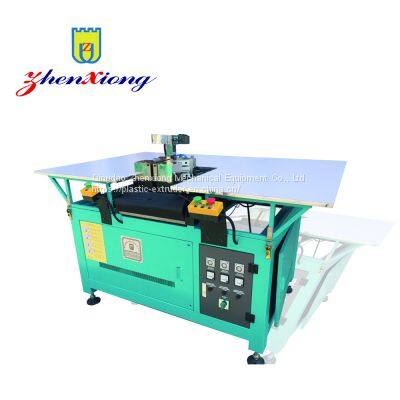

Automatic Soft PVC Plastic Refrigerator Gasket Welder
Automatic soft PVC profile welding machine for refrigerator
Automatic freezer Door gasket welding machine/pvc profile welding machine
Door gasket welding machine:
It is specially used in the welding of the refrigerator door gasket, which has the features of compact structure, easy operation and accurate temperature controlling. The heating tube is made of imported materials. One leg period of this machine is about 14 seconds and the leg stretching resistance is higher than the technical standard in the same industry at home and abroad.
Feature:
(1) This machine adopts advanced PLC control system that conquers error of old machine caused by multi electric apparatus.
(2) It breaches many processes of old welder such as manual work for pruning rest material and welding lump and so forth.
(3) This machine can weld 2 gasket corners every time, after welding, it cleans rest material automatically to keep even, firm and beautiful appearance of welding corner.
(4) The welding process is: heating ~ vacuum adsorption ~ welding ~ inner cooling ~ outer cooling ~ automatic outlet.
(5) Photoelectrical protection system is used to protect hands being clamped in operation.
(6) Welding period is 11~14 second/ two corners, the output can reach 600~650 sets per day.
For more detail info, please feel free to contact with me.
Contact information
Anita Zhang
Qingdao Zhenxiong MechCutanical Equipment Co., Ltd
No. 678, Hangzhou Road, Jiaozhou, Qingdao, China
>>
