Automatic Two Side Seal Kraft Paper Bubble Envelope Making Machine

Product Description

Youtube Video Link

https://youtu.be/-IN00CD9lKk	Honeycomb paper envelope making machine
https://youtu.be/YB0Jt5miIWw	Flikpak envelope making machine
https://youtu.be/vk0gjc_VI9s	Kraft paper Bubble envelope making machine with laminated
https://youtu.be/yP7-IFjlktw	Zipper stand Bubble mailer envelope making machine with laminated
https://youtu.be/p3IPTLpqB2k	Kraft bubble envelope Pouch making machine with laminated
https://youtu.be/C5_ERJjTpro	Kraft bubble envelope making machine with laminated
https://youtu.be/7GclNqQElhc
https://youtu.be/fi8GuWVRrdI
https://youtu.be/Sv9KlkFGszo	Envelope making machine , No laminated

Product Description

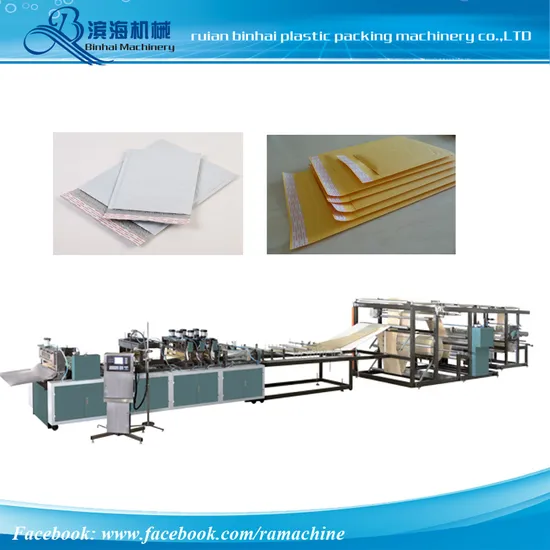

Automatic Two Side Seal Kraft Paper Bubble Envelope Making Machine
This machine is special designed to make the bubble mailer from craft paper with bubble linings.
It combine two layers craft paper and two layers PE bubble film together by hot melt glue. Be sealed under the press of the vertical heat-seal bar and the horizontal heat-seal bar, then be cooled under cooling bar, at last be cut at the fixed length to be the finished mail bag.
This machine adopts the advanced PLC control system, servo motor fix length, touch screen control, easy to operate, stable performance, the mailer be made with smooth and good seal, it is your ideal choice.
FEATURE:
The machine has such features as: computer controlled, imported servo motor for traction the material, unwinding the material in permanent tension, photoelectrical correct the error, when the sign is loose or there is no material the machine will stop automatically, etc.
Main Technical Parameters of Bubble Envelope Making Machine:

Suitable material	kraft paper 80-110g/sqm (coated)+PE bubble film
Max design speed	80pcs/min(can make two at one time for small size)
Max bag length	700-800 mm for one bag make 400 mm for two bag one time
Max bag width	600 mm
Max reel width	1800mm.
Max reel diameter:	Kraft paper ¢1200mm, PE bubble ¢1200mm
Power supply	3-phase 4-lines AC 380V 50HZ 25KW
Weight	3800KG
Overall dimension(L*W*H)	16400*1750*2300mm

Detailed Photospictures of Bubble Envelope Making Machine , Bubble envelope bag making machine
.
Laminating function part . we use oil circle cylinder to laminating bubble and paper / poly , more stable.
Bag Samples
Packaging & Shipping
Packing and shipping
Machines will Packed with Waterproof oil , stretch Film
If need , Fumigation wooden case as option
Delivery date: 35days after receipt of down payment.
Shipment from Ningbo port ,China By Sea
CertificationsCE , ISO , CO , etc Certificates ., If need other certificates , should tell us before shipping .
we shipped to USA, Turkey , Portugal , Span , Croatia ,Moldova , Colombia,Tailand , Indonesia ,United Arab Emirates.Russia ,IRAN , Ukraine , Bangladesh ,india,Sudan , Mexico , Africa ,Angola, Kenya , Algeria ,Ghana and other cities around the world.
Rich export experience , help to make perfect customs documents.Company Profile
FAQ
Are you a factory or Trading Company
We are a factory with experienced exporting products. We also help clients
To look for products which they can not sure of.
Where is your factory Located
Our Factory Located in Ruian City ,Zhejiang Province ,China .
It is about 40minutes by plane from Shanghai, about 5 hours by train from
Shanghai .
We are pleasured to pick up you when you arrived .
How you work if I am not come to China
Usually , I will offer you our All Government Certificates (all Certificates are got after Government persons' Strict Investigation
to show that we are a true exist company,
Then I will show you machines that you want to buy on computer by video and pictures , So that If you have any questions or Good Ideas
on machines , we will discuss with engineers to offer you a well resolution .
When machines finished , If you are too busy to come To China , we can show you pictures and videos .If machines not good ,you can refuse
to pay us .
Surely , If it is no problem , you should pay us the rest 70% Before shipping .
The Whole Shipping Process We will keep in Touch with you by Email or Whatsapp .
From Ruian Binhai Plastic Packing Machinery Co., LTD
THE END OF Bubble Envelope Making Machine

---
