Qipang Manufacturer 400mm Vertical Plum Wire Cable Take up Machine

Product Description

Introducing our premium Wire Coiling Machine, the epitome of excellence crafted for the meticulous demands of carton winding. This state-of-the-art wire bobbin machine is engineered to deliver unparalleled quality and performance, ensuring every coil meets the highest standards. Experience superior efficiency and reliability with this advanced solution tailored for your wire handling needs.
Product drawing
The Plum Blossom Barrel Take-Up Machine is the ultimate solution tailored for both square and round carton packaging, expertly designed for flexible wires including vehicle and electronic wires. This versatile equipment excels whether used independently for inverted spool operations or seamlessly integrated with extrusion lines. Boasting remarkable production efficiency, it features a unique vibration apparatus ensuring that wires are meticulously aligned and neatly arranged, eliminating any potential for tangling or disarray.

Model	Wire diameter	bucket size	Max weight	Color
ML500	φ2-6mm	500mm	75-100kg	grey
Speed	Motor	Forming style	PLC	Automatic
300m/min	4KW	Quincunx	Taida	yes

Detailed Photos
This cutting-edge equipment boasts a remarkable high degree of automation, ensuring seamless and efficient operations. Featuring a user-friendly, humanized interface, it offers unparalleled convenience and speed. Experience the effortless convenience of automatic barrel change, which enhances productivity. Additionally, equipped with an advanced external spark machine, it efficiently manages and eliminates waste lines through its automatic concave and convex meter system.
Product Parameters
I. Main Accessories Brand: Discover unparalleled reliability with our selection of world-renowned electrical appliances and bearings, ensuring that quality is never compromised.
1. Motor: Equipped with a constant speed AC motor, offering steady performance and durability for all your coiling needs.
2. Controller: Features the superior Japan Yaskawa 415V inverter, delivering precision and efficiency.
3. Programmable Design Controller: Utilizing the advanced Delta controller for seamless operations.
4. Electrical Appliances: All components are sourced from trusted brands Chint and Shilin, promising exceptional performance.
5. Bearing: Premium bearings from Harbin and NSK for smooth and consistent operation.
II. Main Specifications and Performance:
1. Applicable Outer Diameter: Expertly handles dimensions ranging from Ф2mm to Ф6.0mm for versatile applications.
2. Height of Packaging and Conveying Platform: Set at an optimal 350mm for ease of operation.
3. Outer Dimensions: 500mm in diameter with a height adjustable between 400-500mm, supporting weights from 75-100kg.
III. The plum blossom take-up machine Composition Specifications:
1. Adaptable Wire Diameter: Accommodates flexible wire sizes of MaxФ2-Ф6 mm for diverse needs.
2. Adapt Line Speed: Capable of adapting to a line speed of up to 300m/min, ensuring swift operations.
3. Power: Driven by a robust 4KW AC motor with three-phase 380V voltage, providing powerful performance.
4. Molding Pattern: Delivers an elegant overlapping plum blossom shape, enhancing aesthetic appeal.
5. Vibration Device: Powered by a 1/2hp gear motor, it efficiently controls the vibration platform, maximizing cable barrel capacity and minimizing transport losses.
6. Adapt to Falling Barrel: Compatible with outer barrel inner diameter of 575mm and inner barrel outer diameter of 300mm with a height of 585mm, or tailored to custom dimensions.
7. Meter Meter Forecast Function: Incorporates an advanced automatic barrel change and storage line system, with manual waste line elimination control for enhanced efficiency.
8. Threading Method: Engineered for rapid stringing, saving you valuable time during operation.
9. Versatile Machine: Perfectly suited for shaping round wire into a plum blossom type within barrels, simplifying subsequent processes like cutting and peeling without causing knots, and supports cutting speeds up to 10m/s.
10. Weight: Sturdy construction with a total weight of 200kg, ensuring stability. plum blossom take-up machine.
11. Operation Direction: Customizable to meet specific client preferences, providing flexibility.
12. Machine Color: Finished in a sophisticated off-white, adding a touch of elegance to your workspace.
Product Application

plum blossom take-up machine auxiliary parts:
1. Match auxiliary inlet guide frame, steering mechanism.

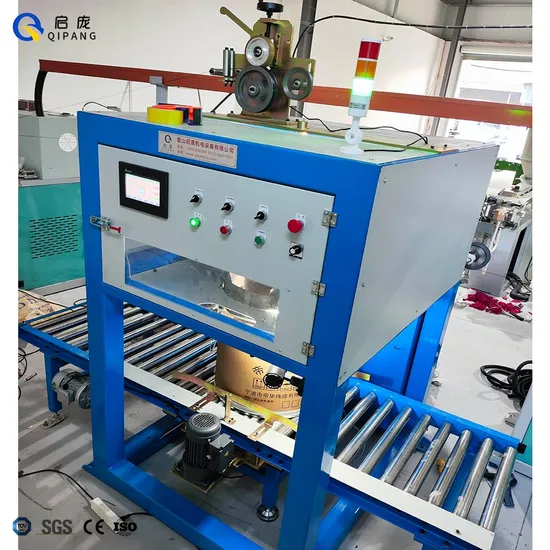

2. Device picture of plum blossom take-up machine
Company Profile

Shanghai Qi Pang Industrial Co., Ltd., with over two decades of rich production expertise, has consistently specialized in the innovation and manufacture of cable testing machines and cable winding machines since its inception. Proudly boasting its own state-of-the-art production and assembly workshops, the company invites customers for virtual tours or in-person inspections of its facilities. Complemented by a dedicated team of professional sales and technical experts, Shanghai Qi Pang ensures exemplary service both before and after your purchase, with seamless online communication available 24/7, ready to address all your inquiries with precision and care.
Explore our top-tier selection: high-quality wire coiling machines, specially designed carton winding machines, and robust wire bobbin machines.

---
