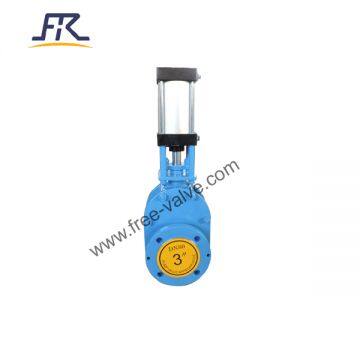

Ceramic lined double disc gate valve
FREE-VALVE’s FRZ644TC Pneumatic Ceramic Discharge Double Disc Gate Valve is mainly used in feeding and dumping the dry powder and the transport pipeline, which not only adopt toughening ceramic as shut off and wear out resistance material, but also design construction of pressure self-sealing and valve disc auto-rotate, so as to the sealing surface within the dry powder get more wear resistance in process of opening and closing frequently, thereby, which guarantee the high requirements of sealing performance of this valve and long working time.
Features:
1. Sealing pair is made of structural ceramics，which have perfect performance to resist wear and flushing.
2. Two-side sealing can realized due to double disc structure of the pneumatic ceramic double disc gate valve.Ceramic seat and ceramic liner are designed separately.
3. It inserts spring between double valve discs to ensure self- sealing through bi-directional flexible preload pressure of spring, having characteristics of low pressure bi-directional sealing and without dust clogging phenomenon in the process of the opening and closing of valve.
4. The valve disc rotational motion can avoid the ash deposition on the sealing surface during opening and closing, so the valves have much longer service.
5. The blow sweep port or automatic blow sweep device can be set on the valve body according to different operating conditions.
6. Both the valve inlet and outlet flow channel are lined with ceramic to make the valve more wear-resisting.
Technical Parameters
1) Size Range: NPS2~NPS16,DN50~DN400
2) Pressure Range: Class 150 /PN6 /PN10
3) Applicable Temperature: 0~200℃
4) Connection Type: Flange
5) Sealing material: Engineering ceramics
6) Pressure test:GB/T13927, API598
7) Face to Face: GB/T12221, ASME B16.10
8) Flange standards:ASME B16.5，GB/T9113
9)Operating Type: Pneumatic
Applications
1. Power plant ash handling system.
2. Cement industry-dry powder conveying and dumping.
3. Dressing works-dry powder materials’ selection and conveying.
Price:500-6000USD/set
Price terms:FOB,CIF,CFR,FCA
Payment terms:TT,LC
Delivery time:30days
Model：FRZ644TC
