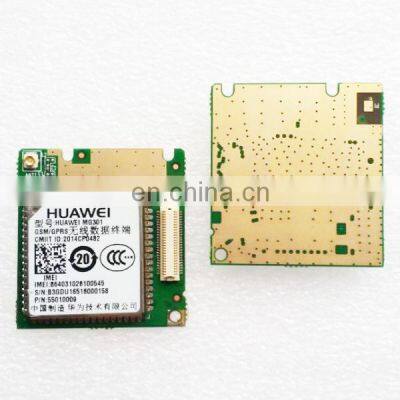

FOR GSM Module MG301 Board to Board, replacing MG323

Product Description

Product Description
DescriptionSpecificationsDimensions: 24 mm*24 mm*2.95 mm (MG301)Weight: < 3gSupport Frequency Band GSM 4: GSM/GPRS: 850MHz/ 900 MHz/ 1800MHz/ 1900MHzOperating TemperatureNormal : -20℃ ~ +70℃Limit : -20℃ ~ +70℃Storage Temperature-40℃ ~ +85℃VoltageDC 3.3 V ~ 4.2 V (typical value: 3.8 V)AT CommandPlease refer to <MG301 GSM LCC Module AT Command Manual>Consumption (test under 3.8 V)Shutdown leakage current : 240µADormancy average current : < 3.0mAGPRS class 10 (Max.): l typical= 350mAApplication interface (68-pin LCC Interfaces)SIM Card Interface (3.0V & 1.8V) 2 Channels Analog Sound InterfaceUART1 Interface (support 8 serial lines) & UART0 Interface (support 2 serial lines)USB InterfaceNetwork status indicatorInterface SwitchHardware reset interfaceHibernates/Wakes up control InterfaceSleep State Indicator InterfaceWake up host interfaceAntenna InterfaceSolder PadSMSSupport SMS alerts, text messages and send messagesSupport SMS management: Read/Delete SMS, saving state, message listSupport PDU modeGPRSGPRS CLASS 10Encoding: CS 1, CS 2, CS 3, CS 4Max. Downlink transmission rate: 85.6 kbit/sMax. Uplink transmission rate: 42.8 kbit/sSupport PBCCHBuilt-in TCP/IP protocol, support several Socket to linkWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC

---
