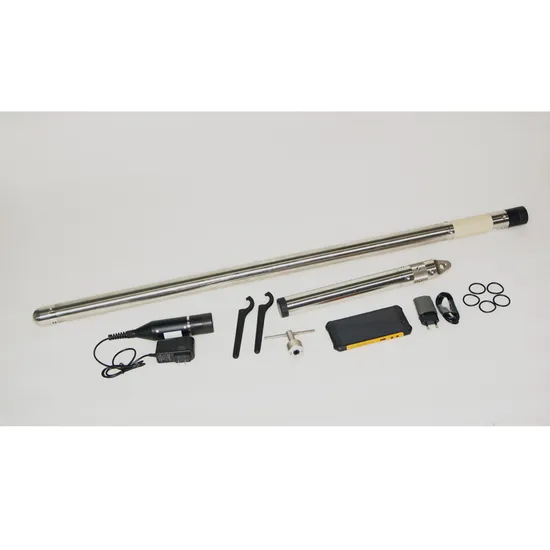

Downhole Navigation System Gyro Inclinometer North Seeking Continuous Fiber Optics Gyro for Deep Oil/Gas Logging

Product Description

Downhole Navigation System GYRO Inclinometer North Seeking Continuous Fiber Optics Gyro for Deep Oil/Gas Logging
The Downhole Navigation System GYRO Inclinometer North Seeking Continuous Fiber Optics Gyro for Deep Oil/Gas Logging uses a high performance 3-Axis Aerospace Fibers Optics sensor which allows the tool to perform North Seeking Azimuth measurements for well inclinations up to 90 deg as well as continuous Azimuth reading while tool is moving.
The Fiber Optics sensor is a very stable technology that does not require periodical calibration as the sensor characteristics do not shift with time resulting in a very reliable system for operation.
The system delivers accurate and reliable information of the wellbore trajectory, it requires less north seeking time compared to similar systems and has better mechanical specifications resulting in better shock and vibration resistance.
The Downhole Navigation System GYRO Inclinometer North Seeking Continuous Fiber Optics Gyro for Deep Oil/Gas Logging an All-in-One system where it can be used for inclination Vertical-to-Horizonal wells and can configured to run in Real-time mode for orientation, Memory Drop mode for wellbore trajectory tracing while tripping.
Application about Downhole Navigation System GYRO Inclinometer North Seeking Continuous Fiber Optics Gyro f
Well Positioning
Gyro Directional Surveying
Geosteering system
Motor & Whipstock Orientation
Memory-Drop Gyro Survey
Oil & Gas, Mining, Geo-Thermal and water wells
Feartures about Downhole Navigation System GYRO Inclinometer North Seeking Continuous Fiber Optics Gyro
Aerospace Fiber Optics technology
HighAccuracy North Seeking
Vertical-to-Horizontal data measurements
Different operating modes (RTM, MDM, CM)
HighAccuracy, High reliability
Specification

Inclination	0° to 90° ±0.1°
Azimuth	0° to 360° ±1° (6°<inc<60°)
Gravity High Side	0° to 360° ±0.5°
North Tool-face	0° to 360° ±1°
North Seeking Time	30 Seconds
Continuous Operating Speed	150 feet/min / 50m/min
Memory capacity	64 Mbit; 200,000 shots
Calibration requirements	None
Wireline Cable resistance	≤ 200Ω
Power requirements (Surface Box)	110/220Vac
Power requirements- (MDM-Battery)	9VDC
Operating Environment
Max. Temp (No Heatshield)	70ºC / 158ºF
Max. Temp (Heatshield)	175ºC / 347ºF
Max. Pressure	80MPa / 11,600psi
Shock	1000G 0.5mS half sine wave
Vibration	10G, 30Hz to 200Hz to 30Hz

If interested in Downhole Navigation System GYRO Inclinometer North Seeking Continuous Fiber Optics Gyro for Deep Oil/Gas Logging, please feel free to contact us for details

---
