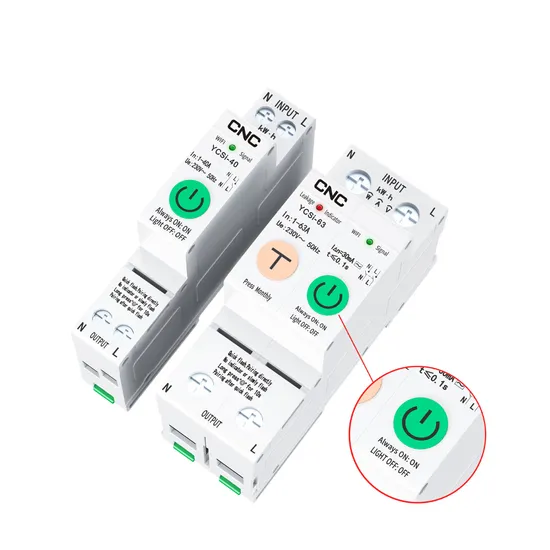

Ycsi AC 230V 40A/63A 2p Zigbee/Tuya Intelligent Remote Control WiFi Smart MCB Switch Circuit Breaker with RS485 Communication

Product Description

Product Description
Features
· Auto-closing: The product can automatically close the circuit when power is supplied during normal operation on the line, and canalso be set to not close the circuit when power is supplied.
· Remote control: mobile phone APP or computer remote control opening/closing.
· Real-time feedback; real-time feedback of product opening/closing status.
· Timing:Timing, delay opening/closing.
· Sharing control: can share control with multiple people.
· Residual current protection: When the leakage current exceeds the set value or personal electric shock (with leakage protection),the protector automatically disconnects within 0.1s.
·With metering function: can display voltage, current, power and electricity.
Technical Data

Rated working voltage	AC230V
Rated current In	1-40A/1-63A
Life	Electrical life 100000 on/off times
Local power consumption	<3W
Working voltage range	AC110V-280V
Maximum rated output current	40A/63A
Wiring	Using Clamp terminals, the cross-sectional area of the wire can reach 16mm
Installation	Installed on a standard TH35 rail
RS485 communication	Baud rate: 9600; communication address range: 1-247
Ambient air temperature	-5ºC~+40ºC,the average value within 24 hours does not exceed +35ºC
Limiting service temperature	-25ºC~+70ºC
Altitude	The altitude of the installation site does not exceed 2000 meters
Humidity	a.When the ambien t air temperature is +40ºC, the relative humid ity of the air should not exceed 50%, and there can be a highe r relative humidity at a lower temperature. b. When the monthly average minimum temperature of the wettest month is 25ºC, the monthly average relative humidity is 90%. c. Condensation on the product surface due to temperature changes has been taken into account.
Pollution degree	Level 2
Installation Category	Class ll and I
