Product Description
Product Description

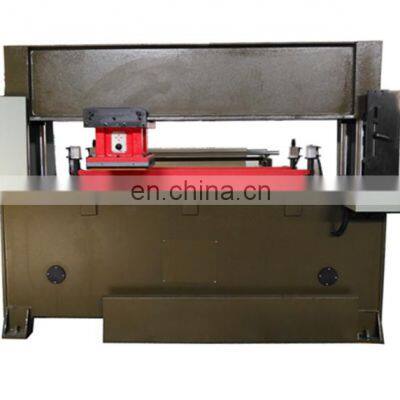

Hydraulic swing arm press cutting machine 1.The Features & Advantages:* The machine is applicable to cutting of various nonmetal materials by cutting die.* Gantry trame structure made of profile steel is adopted, with high intensity and without detormation.* The cutting head can automatically move horizontally, with excellent operating visual field and safe and reliable operation* The hydraulic system specially designed is featured by low noise and low oil consumption.* The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.* The movement of cutting head is controlled by automatic speed variation to realize flexible movement with high speed and accurate positioning and without impact.* Differential oil way is adopted to allow rapid and convenient cutting.* Products of special specifications can be customized.(Cutting force,Cutting head size ,worktable size, automatic feeding device etc.)2.How to choose the most suitable machine you want? Pls tell us the following questions: a. What materials you cut and are they rolls or sheets? b. How many layers of materials to cut at one press? c. The moving head size depends on what's the biggest size of your final products. d. Full automatic feeding or not? Main Technical Parameters ModelDP-T25DP-T25ADPT25BDP-T50DP-T50ADP-T50BMax. Cutting Force25T25T25T50T50T50TWorking Table Size1600*500mm1800*500mm2000*500mm1600*500mm1800*500mm2000*500mmCutting Head Size500*500mm500*500mm500*500mm550*550mm550*550mm550*550mmAdjustable Stroke5-150mm5-150mm5-150mm5-150mm5-150mm5-150mmMotor Power2.2KW2.2KW2.2KW4.0KW4.0KW4.0KWElectric Supply Voltage 3*440/415/400/380/220/200V,50/60Hz Machine Size2200*720*2000mm2400*720*2000mm2600*720*2000mm2200*720*2000mm2400*720*2000mm2600*720*2000mmGross Weight1600kg2100kg3000kg3000kg3800kg5000kg Application: This small machine is used for cutting nonmetal materials such as leather, rubber, plastic, cotton, textile, paper, or other similar materials. It is widely used in shoes making industry. Feature 1. Operation with both hands is safe and reliable. 2. The oil way system specially designed can conveniently adjust the rocker height. No adjustment is needed after the height of die cutter is changed. 3. The use of time control allows for simple and convenient setting of cutter depth. 4. The whole machine uses self-lubricating system to reduce wear and extend the service life of the machine 5. It cuts easily, safely, economically, at a high speed & low failure rate. 6. Rocker descends stably, cuts smoothly and moves around flexibly. 7. Precise control the rocker stroke with the hand wheel and cutting pressure with the potentiometer, greatly reduce wastage of cutting boards. 8. The inertial energy of flying wheel is used so that the energy consumption is low and the operation stable. Technical data: Model:DP-2C-10KNDP-2C -20KNDP-2C -22KNPressure:10T20T22TStroke:100mm80mm100mmWorking area:760×400mm900×430mm1000×500mmCutting width:320mm370mm400mmPower:1.1HP1.0HP1.5HPN.W:600kg660Kg780KgDimension(mm):800×875×1200900×935×13001050×1150×1570 Hydraulic rocker beer machine, (also known as swing cutter, cup, leather trimmed trimmer), the machine is mainly used for cup (cotton bra cups, cloth cup), cutting leather trimming after stereotypes. The machine replaces the traditional stereotypes with scissors to cut pieces performed after trimming manual operation mode, operation is simple, time-saving, cutting power, speed, trimming effect of good, high efficiency. In the industry for molding cutting leather, plastic, canvas, nylon, fiber, cardboard and various synthetic materials one or several layers, and is the first choice of leather cutting. Features 1. Hands should be performed before finding the button, and no non-stop drawbacks safe. 2. stroke using electronic delay circuit control, easy to adjust the level with the cutter, and has micro adjuster, the most accurate. 3. Rocker cutting head, the best line of sight operation, the most convenient choice of materials, and the pressure foot, any soft material can do the job. 4. The special material cutting head, durable and finding the best results. 5. You can use the double-sided sharp cutting knives, save labor and cost
>>
