US$85.00-115.00
|
1 Set
(MOQ)
|
Basic Info.
Application
Communication
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Small Type
Equipment Mode
Decentralized
Output Power Factor
0.8/0.9
Input Voltage Range
90-285VAC
Working Frequency Range
40-70Hz(Settable)
Transport Package
Neutral Carton Box
Specification
280x144x230mm
Production Capacity
100000 Sets/Year
Packaging & Delivery
Package Size
30.00cm * 15.00cm * 25.00cm
Package Gross Weight
8.000kg
Product Description

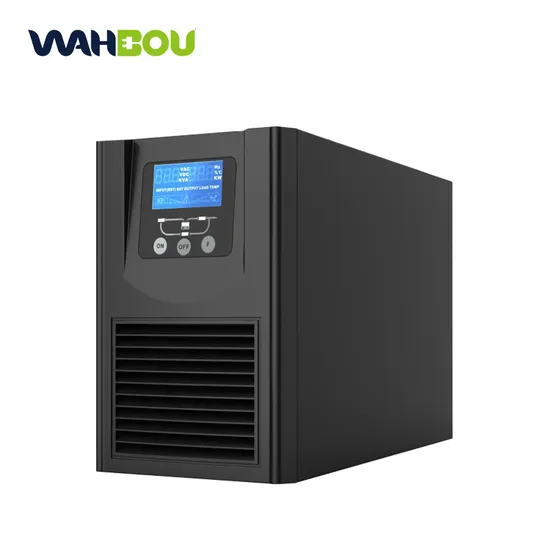

Wahbou GT10 1kVA Online UPS Double Conversion 1kVA, 2kVA, 3kVA Small Size UPS
Our Advantages
Product Description
Product Parameters
| Model | ST 1KVA | ST 1KS | ST 2KVA | ST 2KS | ST 3KVA | ST 3KS |
| Rated Power | 1kVA/0.9kW | 2kVA/1.8kW | 3kVA/2.7kW |
| Input | Voltage Range | 90-285Vac 1P2W+G |
| Working Frequency Range | 40-70Hz (settable) |
| Input Power Factor | ≥0.99 |
| Output | Rated Voltage and Accuracy | 220Vac(1±2%) 1P2W+G |
| Output Frequency | 46-54Hz synchronize with mains power; 50Hz (Mains power between 40-46Hz and 54-60Hz ); 50Hz(Battery) |
| Rated Current | 4.5A | 9.1A | 13.6A |
| Output Power Factor | 0.9 |
| Output Harmonic Wave | ≤4% (Full R load) |
| Crest Factor | 3:1 |
| Output Overload | Overload pre-warning :100%±2%<Load Output warning:102%±2%≤Load≤110%±2%: Convert to bypass mode and alarm after 30mins;
Output warning:110%±2%<Load≤130%±2%: Convert to bypass mode and alarm after 10mins;
Output warning:130%±2%<Load≤150%±2%: Convert to bypass mode and alarm after 30s; Convert to bypass mode and alarm after 200ms, Load>150%±2% |
| Conversion time between Mains Power and Battery | 0ms |
| Efficiency | ≥90% (Normal mode) |
| Battery | Rated Voltage | 24Vdc | 36Vdc | 48Vdc | 72Vdc | 72Vdc | 96Vdc |
| Quantity | 2 | External | 4 | External | 6 | External |
| Charging Current | 1A | 5.5A | 1A | 5.5A | 1A | 5.5A |
| Dimension (LxWxH) mm | 280x144x230 | 400x144x230 | 425x190x328 | 400x144x230 |
| Weight | 7.8kg | 4.2kg | 13.3kg | 6.4kg | 23.4kg | 6.5kg |
| Working Temperature | 0ºC-40ºC |
| Working Humidity | 20%-95% (non-condensing) |
| Noise | ≤50dB |
Detailed Photos
Company Profile
Certifications
Applications
Exhibition & Customer Visit
If any questions please contact our sales, and You are Welcom to visit us anytime!
