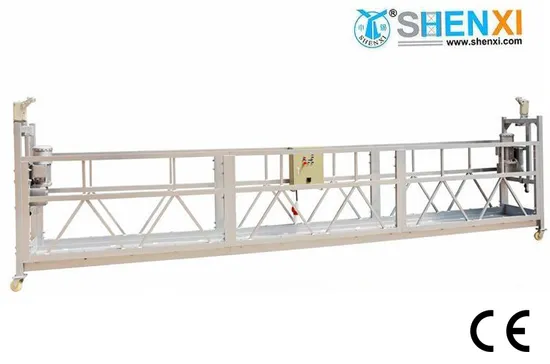

ZLP800 Aluminum Suspended Platform with CE Certification

Product Description

Shenxi is the largest and best manufacturer of suspended platform in China with 30+ years history.
It is aslo called cradle, gondola, swing stage in some countires.
ZLP800 is the heavy duty modle in the market. Aluminum alloy material, light weight and anti-rust,make the working simple and convenient. 7.5m platform width and 800Kg load capacity can provide wide working space and heavy load capacity,such as marble curtain wall.
Use: Glass and aluminum or marble cutain wall
Facade Painting and plastering
Facade Installing insulating layer
Cleanning windows and so on.
Technical Parameters

Model			ZLP300	ZLP500	ZLP630	ZLP800	ZLP1000
Rated Capacity			300kg	500kg	630kg	800kg	1000kg
Rated speed			7~9m/min	9~11m/min	9~11m/min	8~10m/min	8~10m/min
Platform Width			3m	5m	6m	7.5m	7.5m
Powered Unit: Hoist			LTD3	LTD5	LTD6.3	LTD8	LTD10
Steel Wire Rope			8.3mm	8.3mm	8.3mm	8.6mm	8.6mm
Weight	Counterweight		500kg	750kg	900kg	1000kg	1300kg
	Platform	Alu.	280kg	381kg	396kg	448kg	528kg
		Steel	310kg	440kg	480kg	594kg	630kg
	Suspension Mechanism		310kg
Electricity	Voltage		220/380/400/415/440V as option
	Frequency		50/60Hz
	Phase		Three Phase
Safety Device	Safety Lock		LSB30 Anti-titling
	Overload Device		As option
	Safety Harness		As option
Hanging Device	Suspension Mechanism		Projecting length 1.3m-1.7m
	Parapet Clamps		As option

Components photos:

---
