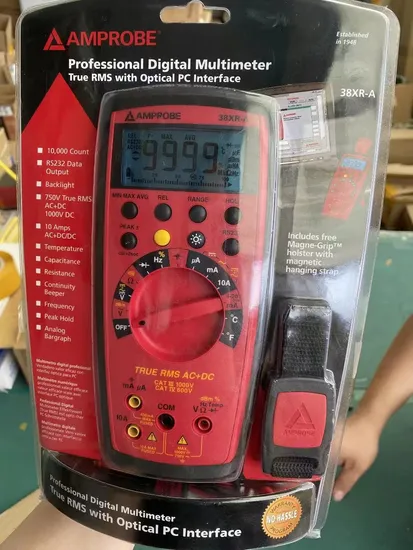

Amprobe 38xr-a - Trms Digital Multimeter with Temperature

Product Description

Product Parameters
PROF DMM TRUE RMS W OPTICAL PC INTERFACE
Backlight, True-rms with with optical PC interface Frequency to 10 MHz, capacitance to 400 uF, temperature to 2372 °F Bright blue backlight 10 Amps AC/DC, fully safety fused Continuity beeper Min/max, average, relative, peak, and data hold Auto power off to save battery life Separate door for easy battery and fuse access Magne-Grip™ Holster with magnetic hanging strap Autoranging; display: 4-3/4 digit LCD, 10,000 counts with 41-segment analog bar graph Display update rate: 2/sec, nominal Power battery: 9 V NEDA 1604, JIS 006P, IEC 6F22 Operating temperature: 0 °C to 45 °C at < 70 % R.H Description Amprobe 38XR-A - TRMS Digital Multimeter with Temperature Backlight, True-rms with with optical PC interface Frequency to 10 MHz, capacitance to 400 uF, temperature to 2372 °F Bright blue backlight 10 Amps AC/DC, fully safety fused Continuity beeper The Amprobe 38XR-A, a True-rms digital multimeter with optical PC interface for engineers designing and troubleshooting industrial automation and control systems.
In The Box 38XR-A Test leads with threaded alligator clips Temperature adaptor Type K thermocouple probe 9 V battery (installed) Magne-Grip™ Holster with magnetic hanging strap Spare fuse Manuals/Guides Manuals Manual Spec Sheets Spec Sheet Comparison Comparison Chart Manufacturer Specs

DC Voltage	1.000 mV, 10.00 V, 100.0 V, 1000 V
AC Voltage	1.000 mV, 10.00 V, 100.0 V, 1000 V
DC Current	100.0 µA, 1.000 µA, 10.00 mA, 100.0 mA, 400.0 mA, 10.00 A
AC Current	100.0 µA, 1.000 µA, 10.00 mA, 100.0 mA, 400.0 mA, 10.00 A
Resistance	1000.0 O, 10.000 kO, 100.00 kO, 1000.0 kO, 10.00 MO , 40.00 MO
Continuity	•
Diode	•
VolTect™ Non-Contact Voltage Detection	-
Capacitance	40.00 nF. 400.0 nF, 4.000 µF, 40.00 µF, 400.0 µF
Frequency	100.00 Hz, 1.0000 kHz, 10.000 kHz, 100.00 kHz, 1.0000 MHz, 10.000 MHz
Temperature	2372 °F (1300 °C)
Duty cycle	0.00 % → 90.0 %
Logic test	-
Inductance	-
dBm	-13 dBm → + 50 dBm
DC Voltage ranges	1000 mV, 10 V, 100 V, 1000 V
DC Voltage accuracy	All ranges ± (0.25 % rdg + 5 dgt)
DC Voltage resolution	100 µV
AC Voltage (45 Hz to 2 kHz) True-rms ranges	1000 mV, 10 V, 100 V, 750 V
AC Voltage (45 Hz to 2 kHz) True-rms accuracy	750 V range: 45 to 1 kHz: ± (2.0 % rdg + 10 dgts) All other ranges, 45 to 500 Hz: ± (1.2 % rdg + 10 dgts) All other ranges, 500 to 2 kHz: ± (2.0 % rdg + 10 dgts)
AC coupled	True RMS specified from 5 % to 100 % of range
AC + DC Voltage (45 Hz to 2 kHz)	1000 mV, 10 V, 100 V, 750 V
DC Current ranges	100 µA, 1000 µA, 10 mA, 100 mA, 400 mA, 10 A
DC Current accuracy	100 µA range: ± (0.5 % rdg + 10 dgt) 1000 uA to 400 mA ranges: ± (0.5 % rdg + 5 dgts) 10 A range: ± (1.5 % rdg + 10 dgt)
DC Current resolution	0.01 µA
AC Current (True-rms) ( AC + DC) (45 Hz - 1 kHz) ranges	100 µA, 1000 µA, 10 mA, 100 mA, 400 mA, 10 A
AC Current (True-rms) ( AC + DC) (45 Hz - 1 kHz) accuracy	100 µA to 100 mA ranges: ± (1.5 % rdg + 10 dgts) 400 mA range: ± (2.0 % rdg + 10 dgts) 10 A range: ± (2.5 % rdg + 10 dgts)
AC Current (45 Hz to 1 kHz) True-rms resolution	0.01 µA
Resistance ranges	1000 O 10 kO 100 kO 1000 kO 10 MO 40 MO
Resistance accuracy	1000 O to 1000 kO ranges: ± (0.5 % rdg + 8 dgts) 10 MO range: ± (1.0 % rdg + 10 dgts) 40 MO range: ± (2.0 % rdg + 10 dgts)

Tech Specs Multimeters Template Style Measures AC V Measures DC V Measures AC A Measures DC A True RMS Maximum Voltage AC Resolution AC Volts Maximum Voltage DC Resolution DC Volts Maximum Current AC Minimum Current AC Resolution AC Current Maximum Current DC Minimum Current DC Resolution DC Current Basic Accuracy V DC # Digit Display Counts Backlight Manual/Autoranging Decibels Resistance Frequency Capacitance Temperature Diode Testing CAT Rating CAT Voltage Intrinsically Safe Peak Hold Overload Protector Kelvin 4-Wire Measurement Capability Wireless Display Data Hold Low-Pass Filter Duty Cycle % Test Equipment General Attributes Unique Features Warranty Warranty Details Additional Info/Comments Safety Approval Interfaces I/O Product Weight Product Height Product Length Product Width Data Logging HTS/Schedule B Number ECCN Number Calibration Included Power Supply Voltage Country of Origin

Hand-Held

Yes

Yes

Yes

Yes

Yes

750 V

100 uV (0.1 mV)

1000 V

100 uV (0.1 mV)

10 A

0.01 uA (0.00001 mA)

0.01 uA (0.00001 mA)

10 A

0.01 uA (0.00001 mA)

0.01 uA (0.00001 mA)

± 0.25% Rdg + 5D

4.75

10000 .

Yes

Auto-ranging

No

Yes

Yes

Yes

Yes

Yes

III

1,000 V

No

Yes

Yes

No

No

Yes

No

0% to 90%

10A Fully Safety Fused, Auto Power Off to Save Battery Life, Separate Door for Easy Battery and Fuse Access

3 YEARS

3 Years from the Date of Purchase, Shall not be Liable for Loss of use of the Multimeter or other Incidental or Consequential Damages, Expenses or Economical Loss or for any Claim or Claims for such Damage, Expenses or Economical Loss

Deluxe Test Lead Kit, Heavy Duty Case, High Voltage Probe, Padded Vinyl Carry Case, High Temperature Probe & RS232 Cable and Software

CSA

RS-232

1 LBS

7.8 IN

2.4 IN

3.55 IN

No

9030.32.0000

3A992

Factory Calibration

Battery Powered

Taiwan
