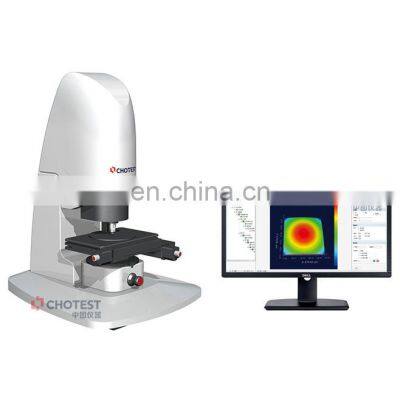

Product Overview W1 Nano 3D Optical Surface ProfilometerSuperView W1 Optical 3D Surface profilometer is an ideal instrument for sub-Nanometer measurement of various precision parts. Based on the principle of white light interference technology, combined with precision Z-direction scanning module and 3D modeling algorithm, it contactlessly scans the surface of the object then establish a 3D image for the surface. A serial of 2D, 3D parameters reflecting surface quality of the object are obtained after XtremeVision software processes and analyzes the 3D image. The SuperView W1 is a user-friendly precision optical instrument with powerful analysis functions for all kinds of surface form & roughness parameters. With unique light source it could measure various precision parts with both smooth and rough surface.FEATURES AT A GLANCE PRODUCT SPECIFICATIONS Light Source White/Green LED Image System 1024*1024(Optional 2048×2048) Objectives 10×,50× ,(Optional 2.5×,5×,20×,100×) Optical zoom 1×(Optional 0.5×,0.75×) Lens holder 3 holes(Optional 5 holes) XY StageSize320*200mm Moving range140*100mm Loading capacity10kg Control Type Motorized Resolution0.1μm Tilt ±5°(Manual) Z StageMoving range100mm( Motorized) Scanning range10mm Scanning speed45μm/s Resolution0.1nm Reflectivity of testing object 0.05%~100% Step Height measurementAccuracy0.7% Repeatability0.1% 1σ Note:Performance parameters are tested by using a 4.7µm precision master stage gauge in lab according to ISO 4287 and ISO25178.Zoom ratio of lens 2.5×5×10×20×50×100×Numerical hole diameter 0.0750.130.30.40.550.7Optical resolution @550nm(µm) 3.72.10.920.690.50.4Depth of focus(µm) 48.616.23.041.710.90.56Working distance(mm) 10.39.37.44.73.42Field H×V (mm)Video system1024×10240.5×3.84×3.841.92×1.920.96×0.960.48×0.480.192×0.1920.096×0.096 0.75×2.56×2.561.28×1.280.64×0.640.32×0.320.128×0.1280.064×0.064 1×1.92×1.920.96×0.960.48×0.480.24×0.240.096×0.0960.048×0.048 Video system2048×20480.5×8.96×8.964.48×4.482.24×2.241.12×1.120.448×0.4480.224×0.224 0.75×6.44×6.443.22×3.221.61×1.610.805×0.8050.322×0.3220.161×0.161 1×4.48×4.482.24×2.241.12×1.120.56×0.560.224×0.2240.112×0.112Built-in ISO/ASME/EUR/GBT Standards of 2D, 3D parameters:2D Parameters3D ParametersProducts Application It is used for measurement and analysis of surface roughness and profile of precision components from industries ofsemi-conductor, 3C Electronics, ultraprecise machining, optical machining, micro-nano materials, micro-electro-mechanical system.More ApplicationMeasurement and analysis for various products, components and materials`surface form and profile characteristics, such as flatness, roughness, waviness, appearance, surface defect, abrasion,corrosion, gap, hole, stage, curvature, deformation, etc.3C Electronics_Sapphire crystal 3C Electronics _ Ink screen Product packaging Standard1. Host machine * 12. Video System *13. Optical Zoom 0.5x * 14. Objective Lens 10x * 15. XY stage *16. Lens holder 3 holes-type *17. Computer8. 4.7μm calibration step9. Operating handle10. XtremeVision Software11. Automatic multi-area measurement, automatic splicing measurement module12. electrical control cabinet13. TGY30-680-30L air compressor14. Aluminium alloy suitcase for accessories15. User manual16. Product certification and Warranty cardOptional1. Optical Zoom 0.75x, 1x2. Objective Lens 2.5x, 5x, 20x, 50x, 100x3. Vacuum table 4'', 6'', 8'' etc4. 5-holes lens holderWhy Choose Us CHOTEST is not only a software company but also a national high-tech enterprise integrating research, development, production and sales, which is specialized in designing and producing precision measurement instruments, calibration instruments and 3D Optical surface profilometer for Nano 3D contour and roughness measurement. The company has 2,000 square meters of modern office well equipped with advanced research facilities. In addition, it owns 5,000 square meters of precision machining and assembly factory. All products are manufactured in accordance with ISO9001 standard. The company is always living up to the motto that is providing our customers with top quality products. At present, the company has dozens of self-developed products with new technology, widely used in government Metrology and Quality Inspection agencies, international military, automotive, aerospace, machinery, metallurgy, electric power, petrochemical and other industries. The company also has involved in developing a number of national standards and has made its due contribution for China's metrology and testing technology progress. CHOTEST focuses on technology development of precision measurement equipments and sophisticated testing equipments. It constantly challenges to all kinds of technical barriers and technology monopoly. The goal of the company is to provide high-end measuring equipments to manufacturing industry in all over the world.FAQ 1. Are you factory?Yes, we are specialized in designing and producing precision measurement instruments and calibration instruments.2. How many years experience do you have?We have 16 years experience on measurement instruments and calibration instruments since 2002. 3. What size of your factory?We have 5000 square meters of factory and 2,000 square meters of modern office 4. Can you accept OEM and ODM?No, we only sell the products under Chotest brand. 5. Can I become your distributor of 3D Optical surface profilometer??Yes, please contact our sales engineer. 6. What is the lead time?Lead time is 30-60days in usual. 7. What is your payment term?30% deposit first, balance payment before delivery. We accept T/T, L/C. 8. How to install the machine?We dispatch our engineers to install and debug the machine in site of the customer. 9. What is your warranty term?We provide 1 year warranty after acceptance inspection by customer.Free repair or replacement in 1 year warranty in case of any problem.Response in 12 hours for emails or calls from customers in working days.
>>
