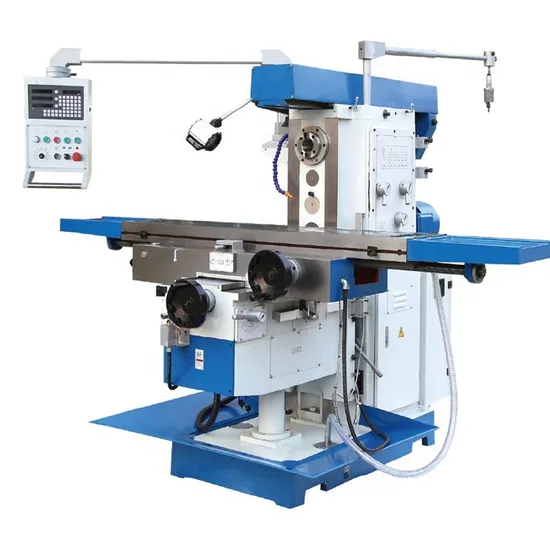

XL6136CL Factory Price Hot Selling Universal Milling machine with CE

US$9,890.00
1 Sets
US$9,690.00
2-4 Sets
US$9,570.00
5+ Sets

Basic Info.

Model NO.
XL6136CL
Structure
planer type milling machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Warranty
13 months
Table Travel (X) (mm)
1300 mm
Weight (KG)
2650
Machining Capacity
Heavy Duty
Key Selling Points
Competitive Price
Power(W)
5.5KW
universal milling machine
swivel table
Table Travel (Y) (mm)
320 mm
Drilling capacity
50mm
Table Travel (mm)
1300 320 400mm
Dimension(L*W*H)
2520X2100X1870mm
color
customer appoint
Voltage
220V 380V
Table Travel (Z) (mm)
400 mm
Transport Package
Plywood Case
Specification
CE, SGS, ISO9001: 2000
Trademark
WMTCNC
Origin
China
Production Capacity
30 Set/Sets Per Month

Product Description

Product Description
Features:
Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing Precision-ground guide ways with hardened surfaces for long-term accuracy and wear-resistance Large work area of 1600x 360 mm and up to 450 kg table load capacity Quiet, precision-made head stock gears with hardened and ground gears Powerful axis servo-motors allow infinite adjustment of feeds on all 3 axes 5.5 kW main drive guarantees high torque Coolant system and chip tray are Included
Product Parameters

Specification
Unit
XL6136CL
Table size
mm
1600*360
Table Travel (X,Y,Z)
mm
1300
320
400mm
Spindle taper
---
7:24 ISO50
Rapid speed of table (X,Y,Z)
mm/min
1200
800
600
Table feed (X,Y,Z)
mm/min
8 steps
X:30-750 \ Y:20-500 \ Z:15--375
T-slots(NO./Width/Pitch)
mm
3/18/80
Spindle speed range
r/min
12 steps
60-1800
Distance between spindle nose and table surface
mm
20-420
T-slots (NO.:/Width/pitch)

3/18/80
Arm travel
mm
500
Distance between spindle axis and colomn guide way
mm
175
Main motor
kw
5.5
X,Y,Z to feed Ac servo motor torque
N.m
10
Overall size
mm
2520*2100*1870
Net weight
kg
2550
