| d33 Range | 10 to 2000pC/N (×1 range);1 to 200pC/N (×0.1 range) | |
| Accuracy: | ×1 range | ±2% of the d33 value in 100 to 2000 pC/N |
| ±5% of the d33 value in 10 to 200 pC/N | ||
| ×0.1 range | ±2% of the d33 value in 10 to 200 pC/N | |
| ±5% of the d33 value in 1 to 20 pC/N | ||
| Resolution | ×1 range | 1pC/N |
| ×0.1 range | 0.1pC/N | |
| Force: Frequency | DC to 110Hz | |
| Force: Amplitude | 0.25N | |
| Polarity indication: | Indicates polarity on upper face of test element in compression. (- sign means negative, no sign positive) | |
| Temperature | Operating: 0ºC to +40ºC;Storage:-55ºC to +85ºC | |
| Humidity | 85%R.H.Max. | |

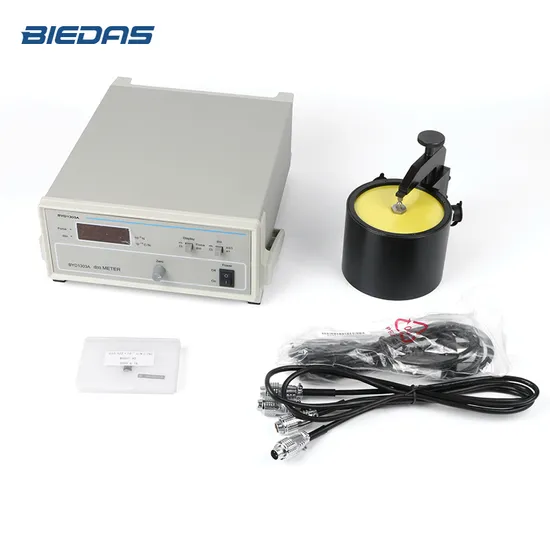

| Dimensions | Force Head:Φ110mm×140mm (H) | |
| Chassis:220mm(W)× 90mm (H)×280mm (D) | ||
| Weight | Force Head:about 3Kg;Chassis:about 2Kg | |
| Power Supply | AC220V±10%50Hz0.2A/AC110V±10%60Hz0.3A (Selectable on the rear panel) | |
| Accessories | Connecting cables:2; Power cable:1; Standard sample:1 | |
