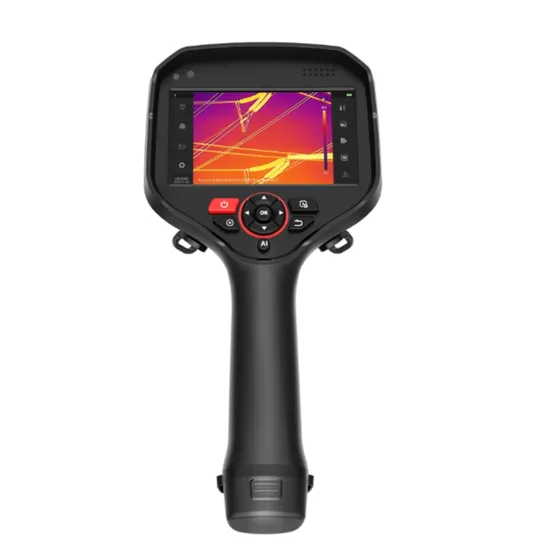

Equipped with a new-generation detector with a resolution of 480×360/640×512 and a NETD as low as 35mK, the new RT400/630 series can capture more subtle hotspots, and display sharper and cleaner thermal images. The device has rich and powerful features such as Android OS, trend analysis, area measurement. It is a new strong tool for expert-level full-scene analysis. Product highlights
• Clear Thermal Images, Precise Temperature Measurement Equipped with a 12μm uncooled infrared detector, with a resolution of 640×512/480×360, supporting super resolution. NETD as low as 35mK, and measurement accuracy of ±2°C or ±2% of reading (whichever is greater)
• Various Lenses and Fast Focusing Standard 25° lens, with optional wide-angle, long-focus, ultra-long-focus, and macro lenses flexible for diverse scenarios.
• Functional Upgrade to Improve Efficiency Android operating system, more convenient to operate. Support intelligent image stabilization, making temperature measurement images more stable. Support laser rangefinding and area measurement.
• Intelligent Analysis, Efficient Temperature Measurement Support up to 20 points/lines/areas to analyze more temperature details in the screen. Support customized isotherms to highlight temperature segments or areas that need more attention. Support intelligent routine inspection, enabling import and editing of general task packages, etc. Specifications
| Thermal Imaging |
| Detector Type | 12μm uncooled infrared detector |
| Infrared Resolution | 640×512 |
| Super Resolution | 1280×1024 |
| Spectral Band | 7.5-14μm |
| NETD | <35mK (25°C,F1.0) |
| Frame Rate | 25Hz |
| Focal Length | Standard lens: 17.7mm; super telephoto lens: 60.9mm; telephoto lens: 31.5mm; wide-angle lens: 9.5mm; macro lens (0.2×): 13 mm; super macro lens (0.4×): 14.8mm. |
| FOV | Standard lens: 25°×20°; super telephoto lens: 7°×5.6°; telephoto lens: 14°×11.2°; wide-angle lens: 45°×36°. |
| IFOV | Standard lens: 0.68mrad; super telephoto lens: 0.2mrad; telephoto lens: 0.38mrad; wide-angle lens: 1.26mrad; Macro lens: One pixel corresponds to 60μm; super macro lens: One pixel corresponds to 30μm. |
| Focus Mode | Manual focus, one-button center focus, automatic center focus, single-touch automatic focus, laser-assisted focus, electric micro focus |
| Minimum Imaging Distance | Standard lens: 0.6m; super telephoto lens: 4m; telephoto lens: 3 m; wide-angle lens: 1m; macro lens: 39mm; super macro lens: 19mm |
| Measurement Range | -20°C~+150°C, 100°C~650°C; optional: 400°C~1500°C |
| Measurement Accuracy | ±2°C or ±2% of readings, whichever is greater. |
| Image Display |
| Display | 5-inch OLED touch screen, resolution 1280×720 |
| Visible Light Camera | 13 megapixels |
| Digital Zoom | 1×~10× |
| Palettes | 19 options |
| Image Mode | Infrared,visible light,PIP,dual-spectrum fusion |
| Temperature Width Stretch | Support |
| Measurement and Analysis |
| Analysis Functions on the Device | Support up to 20 movable points, lines, frames, circles and polygons,and up to 5 preset modes |
| Laser Rangefinding | Support |
| Area Measurement | Support |
| Hygrothermograph | Support |
| Positioning | Support |
| Temperature Difference Analysis | Support |
| Trend Analysis | Supports temperature trend recording and analysis |
| Image Freezing | Support |
| Analysis Report | PDF format .Support editing and temple importing on the PC client. |
| Supporting Software | PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP) |
| Image Storage |
| Storage Medium | Standard 64GB Micro SD, Support SD, SDHC, SDXC,up to 2TB |
| Text Notes | Support |
| Voice Notes | Support |
| Video Functions |
| Radiate Infrared Video Recording | Support compressed full radiation video recording (.irv), up to 25Hz video recording. |
| Non-radiate Infrared or Visible Light Video Recording | Standard MP4 video recording |
| Radiate Infrared Video Stream Transmission | Analysis at about 25Hz on PC |
| Non-radiate Infrared Video Stream Transmission | RTSP H.264 |
| Video Resolution | 1920x1080 |
| System Functions |
| Intelligent Image Stabilization | Support |
| Intelligent Panoramic Stitching | Support panoramic stitching on the PC client, and one-click synthesis. |
| Intelligent Routine Inspection | Supported. General task package import and editing, standard and automatic naming of images |
| Routine Inspection Record Self-inspection | Support |
| Dual-Spectrum Video Recording | Simultaneous infrared video and visible light video recording, in MP7 format |
| Communication Protocol | Wi-Fi, Bluetooth, USB,DP, Type-C to HDMI |
| Voice Control | Voice assistant, quick command recognition |
| Flashlight | Support |
| Others |
| Microphone/Speaker | Support |
| Battery | 10,000mAh lithium-ion battery, field-replaceable, support fast charging |
| Charging Mode | USB Type-C or desktop charger |
| Battery Life | Continuous operating time ≥ 6 hours (depending on the actual environment and service conditions) |
| External Interface | USB3.0 Type-C, SD card, SIM card, Mini HDMI |
| Tripod Socket | UNC 1/4-20 interface for tripod |
| Operating Temperature | -20°C~+55°C |
| Operating Humidity | 10%~95% (non-condensing) |
| Storage Temperature | -40°C~+70°C |
| IP Grade | IP54 |
| Shock and Vibration | Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6) |
| Weight and Dimensions | About 1.3kg (with battery), 144×129×307mm (subject to actual situations) |
| Authentication | CE/RoHS/CMA, etc. |
| Packing List | Thermal camera×1, standard lens, lithium-ion battery×2, charging stand, charger (with plug for use in multiple countries), charging cable,Bluetooth headset, SD card 64G, Type-C cable, lens hood, mold drawing, data download card, calibration certificate, certificate of qualification, hand strap (with buckle), safety box, lens cap (with screws). |
