Glory Star Industrial-Grade Packed in Piaywood China CNC Hydraulic Metal Bending Machine

Product Description

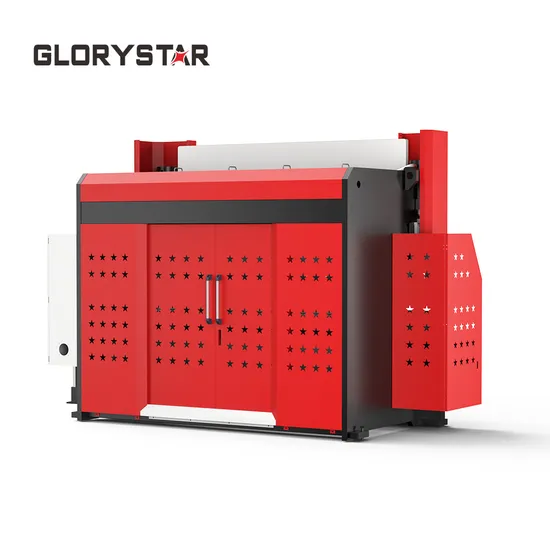

CNC hydraulic bending machine
The GLB CNC Hydraulic Bending Machine produced by Glorystar Laser, with 55 to 240 tons available tonnage capacities, is a fine precision and high-efficiency plate bending processing equipment.
Easy OperationThe Italian ESA professional CNC system has powerful functions, stable performance, simple and easy operation.
High PrecisionEquipped with an Italian famous brand grating ruler, the resolution can reach 0.005mm.
StableAdopted with German Bosch Rexroth whole professional hydraulic system, the split valve group is installed on the top of the cylinder, with high response frequency and stable and reliable performance.
Energy-SavingThe main motor can be optionally equipped with a high-performance servo motor, and the motor speed can be controlled in real-time to reduce the unless work of the oil pump, reduce the oil temperature and noise, and save energy by more than 50%.
>>> Technical Data

Model Parameters		GLB	GLB	GLB	GLB	GLB	GLB	GLB	GLB
		10032	16032	16041	20032	20041	25032	25041	40041
Nominal force(KN)		1000	1600	1600	2000	2000	2500	2500	4000
Length of workbench(mm)		3200	3200	4100	3200	4100	3200	4100	4100
Distance among columns(mm)		2700	2700	3600	2700	3600	2700	3600	3300
Maximum height(mm)		460	460	460	500	500	500	500	530
Slider's trip(mm)		200	200	200	240	240	240	240	240
Throat depth(mm)		400	400	400	400	400	400	400	430
X-axis trip(mm)		650	650	650	650	650	650	650	650
R-axis trip(mm)		150	150	150	150	150	150	150	150
Slider's speed(mm/s)	Downward speed	180	160	160	120	120	110	110	80
	Working speed	10	9	9	8	8	8	8	8
	Return speed	150	130	130	100	100	90	90	70
Main motor(kW)		7.5	11	11	15	15	15	15	30
Tank capacity(L)		350	380	480	480	480	480	480	1000
Outline size(mm)	Length with doors	3400	3400	4300	3400	4300	3400	4300	4300
		-3850	-3870	-4750	-3885	-4765	-3885	-4765	-4825
	Width	1990	2035	2035	2165	2165	2175	2175	2335
	Height	2580	2700	2700	2810	2810	2865	2865	3420
Weight(kg)		8300	10000	11500	12000	13500	13000	14500	23000

>>> Advantages
A. All-steel welding structure, entire tempering treatment, better rigidity and higher strength.
B. Welding on professional worktable,it ensures the verticality, parallelism and straightness.
C. The frame is stress-relief treated in automatic tempering furnace for 48 hours, temperature changes as 200↗650↘ 200(ºC), to ensure frame stability and precision. The surface is treated with sand blasting and environmental primer.
D. Adopting world top machine tools - Japan TOSHIBA BSF-150 floor type boring milling machining center to finish the frame at one-time, which farthest assures the precision and stability under long time operation.
