Basic Info.
Application
Oil Product, Base Oil, Derivatives, Industrial Lubricant
Temperature Range
0.00 -99.99degree
Measuring Range
0-450 Penetration
Time Control
0-60 Seconds
Standard Needle
2.5g +-0.05g
Transport Package
Carton/Plywood
Specification
390mmx310mmx575mm
Production Capacity
100PCS/Month
Product Description

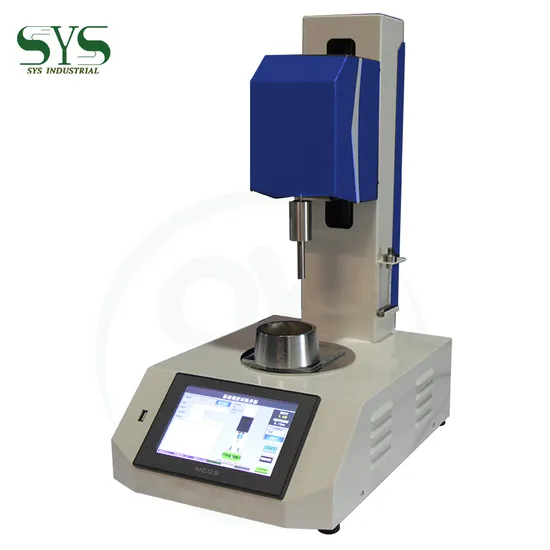

Automatic Vicat Apparatus
Model: SYS-VA10 Application and scope of application Vicat apparatus, also called cement consistency setting time tester. It is a testing instrument for cement and concrete industries. It is mainly used to test the standard consistency water requirement and setting time of cement paste.
This instrument is mainly suitable for Portland cement, ordinary Portland cement, slag Portland cement, fly ash Portland cement, pozzolanic Portland cement, composite Portland cement and other varieties designated cement.
The cement standard consistency net slurry has a certain resistance to the sinking of the standard test rod. By testing the penetration of cement paste with different water content, the amount of water needed to be added to the cement standard consistency paste is determined. Main structure and characteristics
Number | Parameters | Technical indicators |
1 | Time control | Display resolution: 0.1s control precision: ≤±0.1s |
2 | Displacement | Adapt high precision LVDT displacement sensor, split structure, without friction when needle dropping range 0~50mm, display precision: 0.01s Relative displacement accuracy: ≤±0.1mm |
3 | Storage data | 200 groups |
4 | Sliding component | 300g±1g(include needle and rod) |
5 | Data interface | RS485 |
6 | Dimension | 390x310x575mm |
7 | Voltage | 220±10%VAC/50HZ |
8 | Power | 40w |
9 | Net weight | 12kg |
Packing list and materials for test (1)Packing list
NO | Name | Unit | Quantity | Remark |
1 | Vicat host | set | 1 | |
2 | Slit component | pcs | 1 | Sensor rod, cylinder |
3 | Mould | Pcs | 1 | Height 40mm |
4 | Rod | Pcs | 1 | Effective length 50mm Diameter: 10mm |
5 | Needle | pcs | 2 | Effective length 50mm Diameter: 1.13mm |
6 | Glass | pcs | 2 | 100mmx100mm Thick: 4~5mm |
7 | scraper | pcs | 1 | |
8 | Power cable | pcs | 1 | |
9 | 485 Communication data line | pcs | 1 | |
>>
