Semi Automatic Cement Block Making Machine Qt4-24 Concrete Hollow Brick Making Machiner′y

Product Description

QT4-24 semi automatic concrete hollow brick block making machine price

Product Description
Qt4-24b Cement Concrete Hollow Brick Making Machine
1.Introduction
QT4-24B is mechanical vibration type baking-free brick machine(down-vibration box with 2 sets 3.5 KW motor,
up-vibration motor with 1 set 3 KW vibration motor),push-pull mould by electric.dosing material at a time,easily
operated,save labour with less workforce.Regular production use 3-4 workers,one worker control mixer,one
operate the host machine,2 transporting green blocks

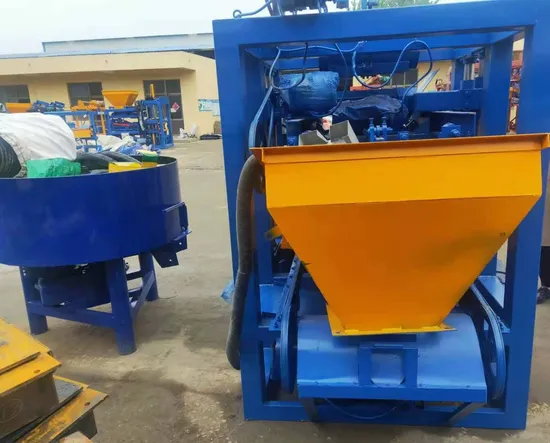

2.Main parts dispaly for QT4-24 semi Automatic Block making machine
3. Main parameters of QT4-24B Semi Automatic block making plant

QT4-24B Host machine total power	13.45kw
Molding cycle	24s
Vibration frequency	4200hz
Vibration force	35.5kn
Function	Semi automatic vibration forming
Host brick machine size	1850(L)×1900(W)×2550(H)mm
Net Weight	1850KG
Pallet size	850-550MM
Mixer model:	JQ 350
Voltage:	220-415 V

4.QT4-24B block machine production capacity show:

Theoretical Production capacity
Size(LxWxH)	PCS/Mould	PCS/ Hr	PCS/ 8 Hr
400X100X200	7	630-840	5040-6720
400X150X200	5	450-600	3600-4800
400X200X200	4	360-450	2880-3600
400X250X200	3	270-360	2160-2880
200X200X200	6	540-720	4320-5760

5 Different shaps of colored paving blocks, hollow concrete bricks,
and kerbstons production by one machine only
6 .Aprox Investment Solution of QT4-24 Semi autom pavement making machine:

Total Power Consumption	81.4 kilowatte /8 hours
Max. Material Consumption Per 8 Hours a. Concrete: 10% cement, 30% sand; 60% stone powder b. 400-200-200mm; 2 holes hollow block	Water: about 1664 kgs
	Sand: about 18345 kgs
	Stone powder: about 36692 kgs
Factory total size	At least 800 square meters
Workers	3-4 workers in factory
Main parts quality	Motor: Shanbo brand (Chinese famous brand) Inductor and Switch: CHNT

7 Finish Concrete Blocks production on client site
Company Profile
Shandong Weida Construction Machinery CO., Ltd is located in Linyi City, Shandong Province, China.
With RMB 16 million investment and 53,000square meters area, We are always developing good and
realiable machinery with international standards to meet clients demands(people-oriented, leading technology,
winning quality, and serving user ). We had exported to more than 100 countries. We have more than 60
technician to ensure superior installations and after sale service to assist clients to install the machine
and perform the proper trainning abroad.
We warmly welcome customers from all over the world come to visit our factory and discuss
Thank you !
Pre-Sales Service * Inquiry and consulting support.
* View our Factory.
* Discuss details.
After-Sales Service * One year warranty * Free supply of spare parts and tools for one year use. * Engineers available to service machinery overseas. * guide for Install the machine, training workers how to use and maintain the machine

---
