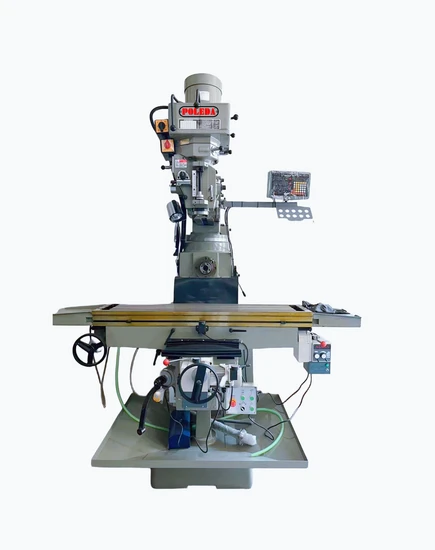

6hv Universal Vertical Turret Milling Machine China Professional Manufacturer

Product Description

Product Description
Characteristics of Vertical and Horizontal Milling Machine
Variable Spindle Axis Direction: Experience unparalleled flexibility with our vertical and horizontal dual-purpose milling machine. The spindle axis direction can be effortlessly altered to suit diverse processing needs, enhancing adaptability and significantly boosting processing efficiency in various scenarios.
Powerful Versatility: Thanks to the adjustable spindle axis direction, our dual-purpose milling machine exhibits extraordinary versatility and potent functionality. It can adeptly handle workpiece surfaces at multiple angles relative to the horizontal plane, catering to an extensive array of processing requirements.
Strong Adaptability: Tailored for a wide array of complex tasks, our dual-purpose milling machine excels in plane, surface, and specialized angle processing. With its adjustable spindle axis, it seamlessly adapts to diverse requirements, ensuring superior performance across applications.
Enhanced Production Efficiency: By altering the spindle axis direction, our vertical and horizontal milling machine can conduct multi-surface processing post a single setup, substantially cutting down workpiece repositioning time and thereby elevating production efficiency to new heights.
Effortless Operation: Despite its powerful capabilities, this milling machine boasts remarkable ease of operation. Users can effortlessly toggle between vertical and horizontal modes, ensuring swift adaptation to any processing demands with simple, user-friendly controls.
Product Parameters
Structural Characteristics of Vertical and Horizontal Milling Machine
First, the Bed Structure
Robust Bed Design: Our milling machine features a double-column bed structure, offering exceptional strength and rigidity for guaranteed precision and stability. The bed integrates a sliding platform capable of supporting the table and spindle weight, effectively minimizing vibration and noise.
Second, Workbench Structure
Workbench Excellence: Crucial to the machine's functionality, the workbench securely holds the workpiece in place. Featuring a T-slot design, it enables easy clamping, and its dual-directional movement and rotatable capability allow for versatile bevel machining needs.
Three, the Main Shaft Structure
Innovative Spindle Design: Our milling machine's spindle, available in vertical or horizontal configurations, incorporates a chuck or tool handle clamping system. With high speed and torque, it caters to varied machining needs, and an integrated cooling system ensures tool and workpiece cooling efficiency.
Four, Feed System
Advanced Feed System: A crucial component, our feed system comprises a feed shaft, servo motor, and precision guide rail. The system expertly manages tool movement in multiple directions, supported by a servo motor for precise control and a guide rail that maintains system stability and precision.
Fifth, Structural Advantages
Comprehensive Structural Benefits: Our vertical and horizontal milling machine stands out with its compact design, robust functionality, and extensive application range. High accuracy and automation capabilities lead to efficient processing, reduced manual involvement, and significant time and cost savings.

Product name	Vertical and horizontal milling machine
Product model	6HV
Product technical parameters
dimension	Table size	1372*330MM
	Table load	350KG
journey	Left and right travel (X)	1000MM
	Forward and backward travel (Y)	420MM
	Up and down travel (Z)	380MM
Vertical spindle coefficient	Spindle taper	NT40
	Distance from spindle to table	150-530MM
	Spindle speed	80-5440RPM
	Spindle lift stroke	127MM
	Spindle horse power	5HP
	Arm reach	600MM
Transverse spindle coefficient	Horizontal shaft motor power	2.2KW
	Transverse spindle speed	60-1320RPM
	Transverse spindle taper	NT40
	Transverse spindle travel	120
	Bracket center height	230
Machine profile dimensions	T-slot (width * Slot number * slot distance)	16MM*3MM*65MM
	Milling head tilt Angle	45 front/back side
	Machine size (L * W * H)	2200*2000*2500MM
	Approximate machine weight	2500kgs
	Accessories name and specification	quantity
Standard parts for machine tools	1.Hand oil pump	1
	2.Work light	1
	3.Organ board + protective glue	1
	4.Vertical NT40 tie rod, horizontal NT40 tie rod	1
	5Tools and toolboxes	1

Special parts for machine tools	6.Two axis electronic ruler	1
	7.X-axis automatic feed	1
	8.6 "flat pliers	1
	9.58 piece composite platen	1
	10.NT40 cable nozzle	2
	11. Operation instructions	1
	12.Z axis lifting motor	1

Detailed Photos
Our Advantages
Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers.
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac.

---
