Electric Mini Drilling /Milling Machine

Product Description

Min. Order Quantity: 5 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T
Quick Details
Condition: New
CNC or Not: Normal
Drilling Speed: 50-2500rpm
Place of Origin: Shandong, China (Mainland)
Brand Name: weihao
Model Number: XJ9512
Voltage: 380V
Power(W): 550W
Dimension(L*W*H): 570x510x740mm
Weight: 62kgs
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: 57x51x74cm 64x57x72cm 62/80kg
Delivery Detail: 30-45days
Specifications
*Variable speed
*Spindle micro feed
*DC motor
*Positive spindle lock
*Imported speed control unit

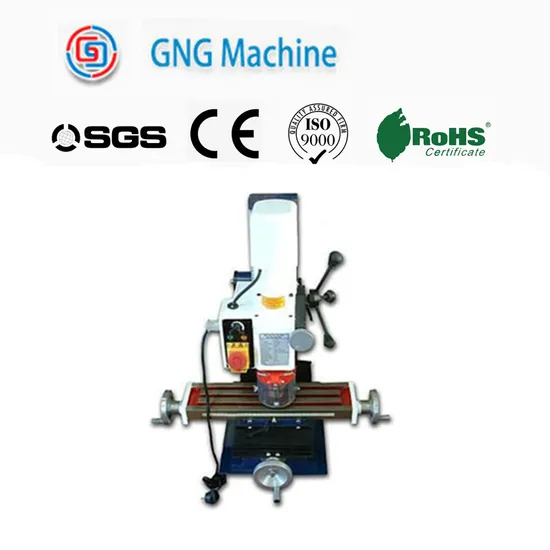

XJ9512 MINI DRILLING & MILLING MACHINE
Technical spec.	XJ9512
FOBQingDao Price(USD)
Drilling capacity	16mm
Max face millcapacity	30mm
Max end mill capacity	13mm
Spindle stroke	180mm
Longitudinal travel	250/300mm
Cross travel	100/130mm
Spindle rotary angle	-45~+45
Working table size	410/460x112mm
Motor power	550W
Max distance spindle to table	220mm
Spindle taper	MT3
Spindle speed	50-2500RPM
Net weight/Gross weight	62/80kg
Packing size	570x510x740mm 640x565x720mm
Product featues	*Variable speed *Spindle micrp feed *DC motor *Positive spindle lock *Imported speed control unit *Adjusrable gibs on table *Milling, drilling. boring, reaming. *Accurate position, strong rigidity, strong cutting power *Head swivels ± 45° of perpendicular

---
