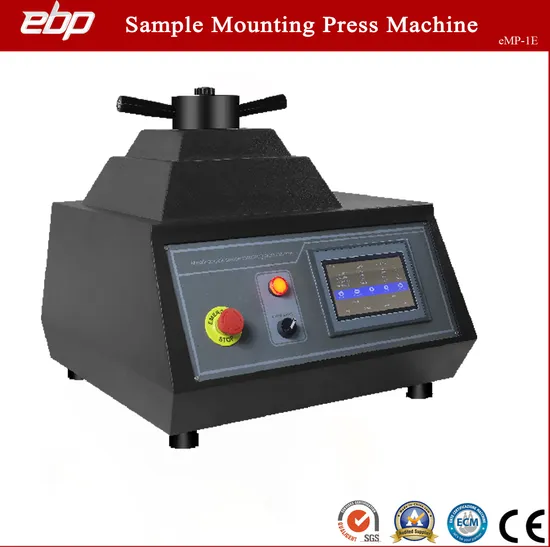

Product Description Hydraulic Automatic Metallographic Sample Mounting Press Machine
Hydraulic system control, more high working efficiency Touch screen programmable control Automatic hot mounting press process Equipped emergency stop button, safe operation With water cooling system, fast cooling down Interchangeable mold assembly kits Ø25 / 30 / 40 / 50mm Product Parameters Main Parameters:
| Model | eMP-1E |
| Mold diameter | Ø25mm, Ø30mm, Ø40mm, Ø50mm |
| Mold cavity height | 135mm, effective height 80mm, Support double spacer (2 samples) |
| Mounting programming | Programmable database, can store 10 groups of Mounting programs |
| Pressure setting range | 0-10MPa adjustable |
| Heater power | 1.5KW, total system 1.8KW |
| Mounting temperature range | 35-200ºC adjustable |
| Pressure holding time range | 1- 99min |
| Pressure Loading | Automatic loading pressure (by hydraulic system) |
| Automatic cooling down time range | 0 - 60min |
| Cooling | Water cooling (Chiller as optional purchase) |
| Mounting program | Can save 10 groups mounting programs |
| Operation and display mode | 8 inch touch screen |
| Power supply | AC220V 50HZ |
| Dimension & N/W | 625*583*565mm; 83kg |
| Packing size & G/W | 915*710*797mm, 104kg |
