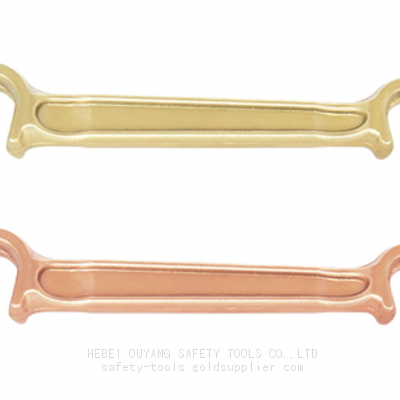

Valve Wrench,C Type

Product Details

Product Description

Product Description
Valve Wrench,C Type
Valve Wrench,C Type
product presentation
A multi-purpose, easy to solve the daily maintenance
Use does not produce sparks, suitable for a variety of flammable and explosive places
product description
Product use:Used to wrench the valve, the size of the two ends is not the same, the scope of application is wider
Commonly used materials:Be-Cu,Al-Cu
product standard: 200mm-450mm
Meets German DIN standards
Technical parameters of
explosion-proof tools:
Standard code for explosion-proof performance of beryllium bronze explosion-proof tools :GBEx IIC
Hardness :HB283-365
Aluminum bronze explosion-proof tools explosion-proof performance standard code :GBEx IIB
Hardness :HB229-291
Magnetic :0
product photography
Strict selection of materials, solid and practical, a variety of options
It can be used in petroleum, chemical industry, coal mine, metalworking, concrete and other environments that are easy to produce sparks, and play a decisive role in explosion-proof
product details
Factory direct sales, strict selection of materials, professional quality
One-time die forging molding process
Vacuum heat treatment technology, mature process, quality assurance
product standard Main technical parameter

L mm	S1 mm	S2 mm	Be-Cu g	Al-Cu g
200	14.5	18.5	370	335
250	17.5	25.5	635	575
450	25.5	34	2385	2160

other problems
(Note: Due to the limited quantity of some products, not all can be presented, this product and product specifications can be customized, if you need our other products, please feel free to contact me via email, I will send you our product sample book for your reference, the price is negotiable, looking forward to answering your questions.)
About our Products:
The above pictures are real product shooting, can really see the original appearance of the product, but because
of the difference in the camera, there will be a slight difference in the color of the product is a real situation
About the model:
Product specifications and models accept customization, and support to map to sample processing customization
About Logistics:
Due to the different regions to which the products are sent, the freight conditions are also different, please communicate with us in detail before the order is completed
About Quality:
The goods will go through strict quality inspection before delivery, if there is any problem, please contact us in time

---
