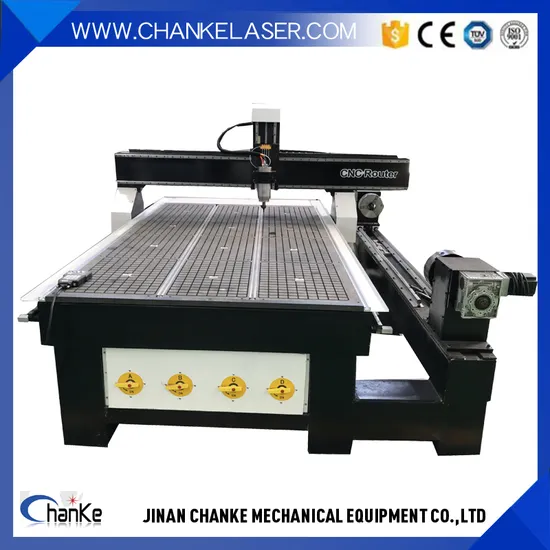

Woodworking Machinery Cutting Wood Carving Engraving Milling CNC Cutting Router Machine

Product Description

Technical data

Brand	chanke
Model	CK1325 3D Wood router cnc
Machine Size (mm)(W*L*thickness)	1900*3100*1800
Table size(mm)	1600*3100
Engraving area (W*L*thickness)(mm)	1300*2500*200
Working Form	Full-automatic
Spindle Power	3.5KW water cooling spindle
Spindle Rotate(rpm)	6000~24000
Motor Driver	Stepper motor (Chinese servo motor or imported servo motor is optional)
Tool Diameter(mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Transmission System	Imported ball screw or high accuracy gear rack
X,Y,Z Rail	Imported square rail
Mechanical Accuracy	<0.03/300mm
Engraving Speed(mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/50Hz or 380V/50Hz
Support Format	G Code or HPGL
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1500Kg

Features
1) T-slot Table: Small-scale processing by using material holder, eliminating the need for
a vacuum pump electricity.
2) Water cooling spindle, with high precision, long life time, steady working, easy to start up.
3) Taiwan Hiwin linear square guide rail, self-lubricating sliding block. It ensures equal
force in all directions and accuracy and strength of the machine.
4) Y axis uses double-motor in-phase drive that ensure the machine equality and smoothly
running.
5) Splendid independent controlling cabinet, easy to make maintenance, use friendly interface.
Applicable materials of wod working machine:
1) Furniture: plate, office furniture, doors, cabinets.
2) Wood products: speakers, games cabinets, computer tables, sewing machines,
musical instruments.
3) Board processing: insulation, plastic chemical components, PCB, car body,
bowling track, ABS, PP, PE, etc.
4) Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper
and aluminum.
How to Order Our Machine?
Before we can recommend you the best suitable machine, please kindly tell us:
1) What materials will you work on?
2) What is your Max.size of your processing materials? ( Length & Width )
3) Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?
4) Does your materials are cylinder? If YES, what's the Max. Diameter of it?
5) If it is possible, could you send us your product samples' picture? It will
help us better to understand.
Trade Items of Machine

MOQ	1 set
Package	Standard Plywood Box
Delivery Terms	FOB, CIF, EXW, Door to Door ect.
Delivery Time	15 working days after receiving payment
Payment Type	T/T, Paypal, Western Union and others
Supply Ability	50 sets/month
Port	Qingdao, China.

Packing of Machine
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

Guarantee & service of Machine
Guarantee:
Two years quality guaranty, the machine with main parts(excluding the
consumables) shall be changed free of charge when if any problem during the warranty period.
Service: ( Provide whole life technical support, 24h online )
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here;
After sale:
1) We would provide English Version working manual.
2) If you have any questions during using and maintaining, our engineers who could speak very good English would answer you online or by calls.
3) Machine warranty is one year. So if your machine has any unintentionall damages, we would provide parts for free.
4) If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.
5) Could be remote control if needed.

---
