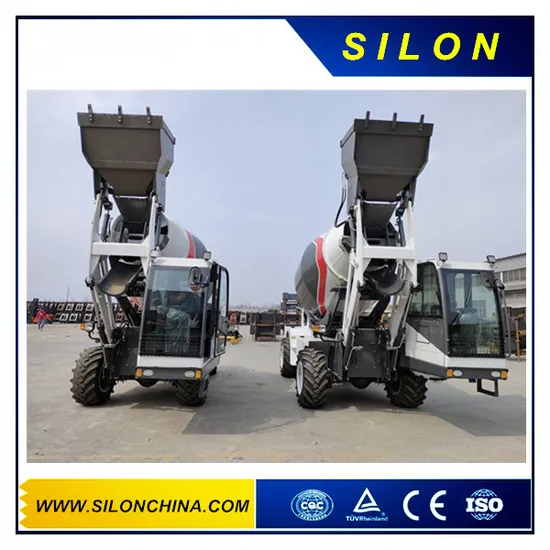

Chinese Manufacturer 3.0m3 Self Loading Concrete Mixer with EPA Engine

Product Description

Product Description
1) 4X4 WD Hydraulic torque converter gearbox, open hydraulic gear oil pump, and reverse gear control to control working speed and travelling speed.
2) Specially-made hub reduction axle on front/ rear axles, flange connection gearbox. Rear axle, oscillating(+-10°) Tyre:1680-20 3) Two water supply system, from external water feeding, can be directly into the drum or water tank. The total capacity of two connected water tanks positioned opposite is 612L Visual flowmeter, the water intake of the roller by hand-control. 4) Double-cone drum with double-spiral mixing screws and convex bottom. The Geometrical volume of drum is 5800L The rotation speed of Drum is 15r/min. Drum rotation by means of a gear pump hydraulic motor, hand control valve in operating room and the behind of mixer machine. Unloading chute by means of one adjustable handle to control tilt. As a standard configuration, we can provide a chute extension unit. 5) Loading arm can be equip with weighing sensor, Loading device with grab bucket and lifting arms controlled by double-acting hydraulic cylinders. Manual control of the feed inlet has a standard prompt function. Capacity:500L Times:5 6) Fuel tank: 165L Total hydraulic system capacity:160L Engine oil:16L
Product Parameters

Model	3.0CBM
Axle	Wheel deceleration
Overall weight	7400Kg
Engine model	YCD4J22-110
Rated power	85KW
Speed	30Km
Minimum turning radius	3.5m
Overall dimension	7000*2500*3250mm

Detailed Photos
YUCHAI Engine Makes the Machinery Powerfull and easy for maintance , they have the serive agent more than 190 countries

Articulated Frame makes the machinery strong and easy for turning in the narrow jobsite
Closing Cabin with the air conditioner and hearter makes the driver comfortable , Big Space for easy control
Electrical Weighting system for customer easy to control the mix capcacity for the material ( sands, cement. water...ect)
Backview Color Monitor
Jocystick is easy for driver to control bucket
18/70-20 tyre is anti- slipe, more stable
Water Pump and Big radiator is make sure the water supply is fast and easy for temputure control
