US$9.90-15.00
|
100 Pieces
(MOQ)
|
Basic Info.
Lamp Body Material
Aluminum
Application
Square, Highway, Garden, Parking Lot
Certification
CB, CCC, CE, CQC, RoHS
With Light Source
With Light Source
Package
Anti-Shock Packaging Material, with Bubble Bags an
Light Distribution
145*65°
Specification
532*150*76mm
Production Capacity
5000PCS/Month
Packaging & Delivery
Package Size
532.00cm * 150.00cm * 76.00cm
Package Gross Weight
1.600kg
Product Description
5050 SMD High light efficiency 30w 40w 50w 60w 80w 100w outdoor LED street lamp
At Jinyuan optoelectronics, our high-quality outdoor led lighting products are the perfect lighting solution for all of your road lighting design projects.
Each of our outdoor led lighting fixtures is built to last a lifetime. If you want durable and reliable led lights for the outdoors that are made in Jinyuan using precision engineered led lighting components and designs that will always look great from the moment they are installed to years later.
This our new series of LED street light.

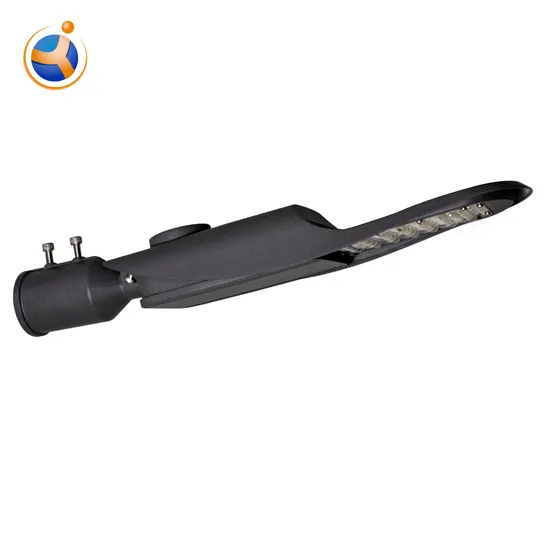

JYL06 series High light performance 30W - 100W led Street light
Product features:
♦ Patented technology, integrated structure design
♦ Convection heat dissipation structure
♦ Using 5050 EMC bracket with high thermal conductivity
♦ Vertical or horizontal installation ,-90° to +90° angle adjustable
♦ Human efficacy light distribution
Parameters:
| Input | 120-277V |
| Input Power | 30w 40w 50w 60w 80w 100w |
| LED chips | 5050SMD, 3030 optional |
| Light efficiency | 120-170lm/w |
| PF | >0.95 |
| CRI | >70Ra |
| led modules | made by 5050SMD |
| Color temperature | 2700-6500K |
| Bean angle | 65*145° |
| IP rating | IP66 |
| Life span | >50000h |
| Housing | aluminium+PC lens |
| Lumen maintenance in 5 years | >90% |
| Warranty | 3 years |
Highlights:
Vertical installation suitable for the street, community, garden,park,etc.
Sizes:
If you need 80-120W can choose our 06M series
JYL06 series parameters:
Optical
Application
Widely apply to park,parking lot,street light,squares,country road,etc.
We welcome you to purchase our superior line of led outdoor streetlights, flood lights, path lights, wall washer lights, garden lights which are all crafted for professional results.
Pls contact us directly for OEM/ODM business of lighting.
>>
