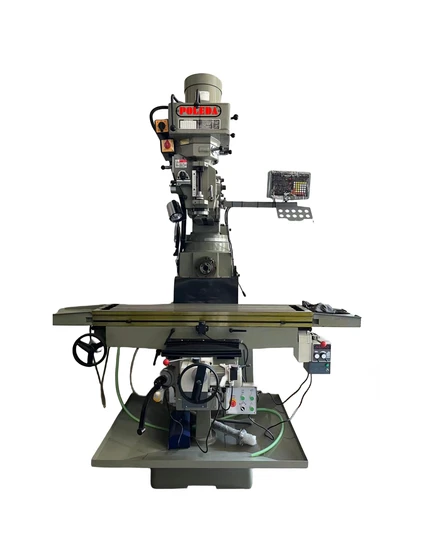

6h Vertical Horizontal Turret Milling Machine Factory Direct Sales

Product Description

Product Description
Characteristics of Vertical and Horizontal Milling Machine
Variable Spindle Axis Direction: Our vertical and horizontal dual-purpose milling machine boasts a revolutionary spindle axis direction that can be adeptly modified to suit diverse processing demands. This adaptability transforms it into a versatile powerhouse capable of thriving in varied machining environments, ultimately enhancing processing efficiency.
Powerful Capabilities: Thanks to the flexibility of its spindle axis direction, this dual-purpose milling machine offers an expansive scope of functionality. It skillfully processes workpiece surfaces at a multitude of angles relative to the horizontal plane, catering to an extensive range of processing requirements with unmatched versatility.
Strong Adaptability: Designed to excel in complex processing tasks, this milling machine masterfully tackles plane processing, intricate surface work, and special angle machining. By simply adjusting the spindle axis direction, it seamlessly meets the challenges of diverse machining operations.
Improved Production Efficiency: By deftly altering the main shaft axis direction, the vertical and horizontal milling machine adeptly processes multiple surfaces in a single setup. This innovation significantly curtails workpiece repositioning time, thereby dramatically boosting production efficiency.
Easy Operation: Marrying power with simplicity, the operation of our vertical and horizontal milling machine is designed for ease. Users effortlessly switch between vertical and horizontal modes through intuitive controls, adapting to a wide array of processing needs.
Product Parameters
Structural Characteristics of Vertical and Horizontal Milling Machine
First, the Bed Structure
The bed of our vertical and horizontal milling machine is engineered with a robust double-column structure that guarantees exceptional strength and rigidity. This design ensures unparalleled precision and stability. The inclusion of a sliding bed adeptly supports the table and spindle, significantly reducing vibration and noise for a superior machining experience.
Second, Workbench Structure
A pivotal component of our milling machine, the workbench secures the workpiece for precision processing. Featuring a thoughtfully designed T-slot for seamless clamping, it maneuvers effortlessly in both vertical and horizontal directions. The workbench's rotatable feature further enhances its ability to perform bevel machining with finesse.
Three, the Main Shaft Structure
The spindle, a cornerstone of our milling machine, is available in both vertical and horizontal configurations, equipped with either chuck or tool handle clamping systems. It offers high speed and torque, adeptly meeting diverse machining needs. An integrated cooling system ensures efficient cooling of both tools and workpieces.
Four, Feed System
An integral aspect of our milling machine, the feed system comprises a feed shaft, servo motor, and guide rail. The feed shaft orchestrates tool movements in horizontal and vertical planes for versatile machining processes. With the precision control of a servo motor, it ensures high-speed, accurate operations. The guide rail guarantees stability and precision throughout the feed system.
Fifth, Structural Advantages
Our vertical and horizontal milling machine is renowned for its compact structure, formidable functionality, and extensive application versatility. It combines high accuracy with a high degree of automation, enabling efficient processing, minimizing manual intervention, and optimizing both time and cost savings.

Product name	Vertical and horizontal milling machine
Product model	6HV
Product technical parameters
dimension	Table size	1372*330MM
	Table load	350KG
journey	Left and right travel (X)	1000MM
	Forward and backward travel (Y)	420MM
	Up and down travel (Z)	380MM
Vertical spindle coefficient	Spindle taper	NT40
	Distance from spindle to table	150-530MM
	Spindle speed	80-5440RPM
	Spindle lift stroke	127MM
	Spindle horse power	5HP
	Arm reach	600MM
Transverse spindle coefficient	Horizontal shaft motor power	2.2KW
	Transverse spindle speed	60-1320RPM
	Transverse spindle taper	NT40
	Transverse spindle travel	120
	Bracket center height	230
Machine profile dimensions	T-slot (width * Slot number * slot distance)	16MM*3MM*65MM
	Milling head tilt Angle	45 front/back side
	Machine size (L * W * H)	2200*2000*2500MM
	Approximate machine weight	2500kgs
	Accessories name and specification	quantity
Standard parts for machine tools	1.Hand oil pump	1
	2.Work light	1
	3.Organ board + protective glue	1
	4.Vertical NT40 tie rod, horizontal NT40 tie rod	1
	5Tools and toolboxes	1

Special parts for machine tools	6.Two axis electronic ruler	1
	7.X-axis automatic feed	1
	8.6 "flat pliers	1
	9.58 piece composite platen	1
	10.NT40 cable nozzle	2
	11. Operation instructions	1
	12.Z axis lifting motor	1

Detailed Photos
Our Advantages
Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers.
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac.

---
