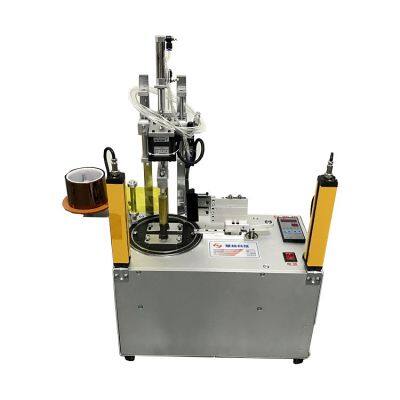

Double down pressure pneumatic lagging machine
HY-B03 Double down pressure pneumatic induction coil tape machine
Packaging machine used in a variety of high and low frequency transformers, inductors coil,
relays and other core tape and insulation tape package; and mobile phone charger,
USB data cable plugs and other protective film packaging.
Using single-chip control, stepper motor 7.5p (power) motor running, high quality, high efficiency, low noise.
Efficiency requirements (capacity requirements): hourly: about 3000pcs (quantity)
Model
| HY-B03
|
Membrane range
| 34mm - 77mm are applicable
|
Number of turns
| 1 - 9 turns, the number of turns can be arbitrarily set
|
Two-axis wheelbase
| diaphragm axis distance from 25mm - 85mm can be adjusted
|
Size
| L430x W300x H560mm
|
Material construction
| the main part of the use of S45C steel material; other A3 steel plating hard chromium
|
Optional function
| a. Automatic return material, easy to operate, improve efficiency (combined with product considerations);
b. Motor speed selection 7.5 or 10 (the smaller the number of the faster);
c. other functions (according to customer requirements);
|
Weight
| 25KG
|
1, any vertical, horizontal transformers can be encapsulated, and the replacement of simple, fast, suitable for a variety of operations.
2, viscose cloth position can be fine-tuned.
3, the number of envelopes can be arbitrarily set, (speed can be adjusted)
4, the body has: manual and automatic functions
5, the yield is about 52-58 / min;
6, the use of man-machine interface control, easy to operate, there is a tape to remind the function.
7, optional function: a. Automatic return material, easy to operate, improve efficiency (combined with product considerations);
b. Motor speed selection 7.5 or 10 (the smaller the number of smaller speed);
c other functions (according to customer requirements Customized);
>>
