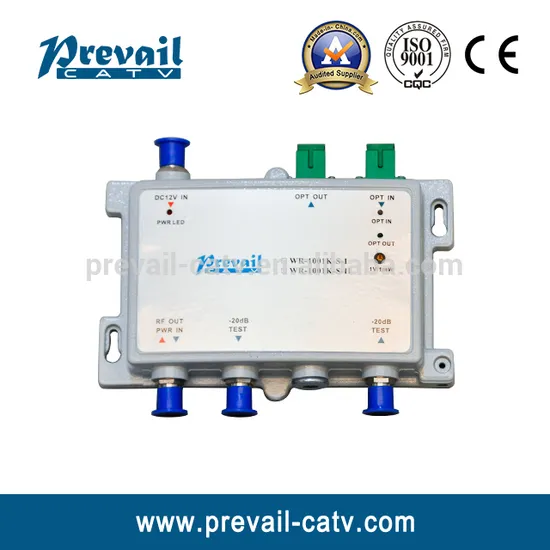

CATV FTTH Rfog Mini Indoor Optical Receiver Node Wr1001K

Product Description

1. Product Summary
WR1001K optical receiver is the bidirectional equipment that is specially developed for HFC structure bidirectional metropolitan area broadband network. Rely on several years' research experience for CATV HFC fiber transmitting equipment. Take full account of the FTTH (Fiber to the Home) network topology, the engineering technology problem of CATV bidirectional return channel noise collection and the high reliability network security transmission requirements of modern CATV business. The return path adopts the burst mode (open the laser when have return signal), which greatly reduced the noise collection.

2. Performance Characteristics Laser control circuit adopts unique design, the work is reliable and stable. Excellent AGC characteristic, when the input optical power range is -7~+2dBm, the output level remain unchanged, CTB and CSO basically unchanged. Optimizing circuit design, SMT production process, optimizing the whole signal path, makes the photoelectronic signal transmission more stable, RF linear indicators higher. Professional RF attenuator circuit, with good attenuation linear and high precision. GaAs amplifier device, with good index, low distortion and high reliability. The return path control adopts burst mode, which greatly reduced the noise collection. The shell adopts aluminum die casting, cooling effect is good and the appearance is exquisite. Technique Parameters

Item	Unit	Technique Parameters
		WR1001
Forward Optical Receive Part
Optical Parameters
Receiving Optical Power	dBm	-7 ~ +2
Suggested Use Range	dBm	-3 ~ +1
Optical Return Loss	dB	> 45
Optical Receiving Wavelength	nm	1100 ~ 1600
Optical Connector Type		FC/APC, SC/APC (or specified by the user)
Optical Fiber Type		Single mode
Link Performance
C/N	dB	≥ 51 received optical power (-1dBm)
C/CTB	dB	≥ 63
C/CSO	dB	≥ 60
RF Parameters
Frequency Range	MHz	47/54/70/85~862(1003)
Flatness in Band	dB	±0.75
Rated Output Level	dBμV	≥ 92
Max Output Level	dBμV	≥ 92
Output Return Loss	dB	≥16
Output Impedance	Ω	75
Reverse Optical Transmit Part
Optical Parameters
Optical Transmit Wavelength	nm	1310±10, 1550±10 or specified by the user
Laser Type		DFB or FP laser
Optical Output Power	mW	0.5, 1, 2
Optical Connector Type		SC/APC (or specified by the user)
RF Parameters
Frequency Range	MHz	5 ~30/42/55/65, (or specified by the user)
Flatness in Band	dB	±0.75
Input Level	dBμV	75~85 (Suggested input 80)
Input Return Loss	dB	≥ 16
Output Impedance	Ω	75
NPR dynamic range	dB	≥15 (NPR≥30 dB) Use DFB laser	≥10 (NPR≥30 dB) Use FP laser
General Performance
Power Voltage	V	DC12V
Operating Temperature	°C	-30~+70
Storage Temperature	°C	-30~+70
Relative Humidity	%	Max 95% no condensation
Consumption	W	≤6
Dimension	mm	154(L) * 116(W) * 26(H)

Process
