Testo 510 Digital Manometer Original in Stock

Product Description

Testo 510 - Digital Manometer* 0 - 40 in H2O pressure measurement range
* 10 selectable units of measure
* Temperature compensated pressure sensor
* Magnetic backing for hands free use
* Air flow measurement with optional pitot tubeProduct Description

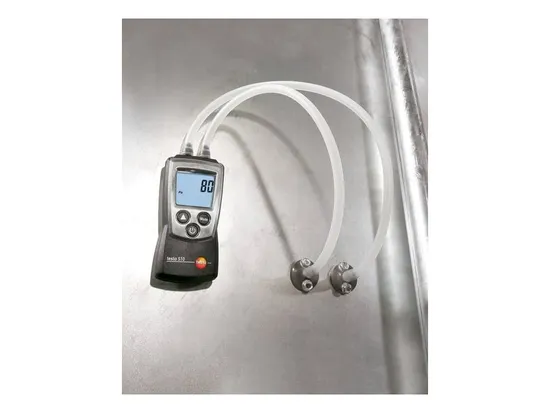

Carry out pressure difference measurements at A/C system filters or air flow measurements in ventilation ducts using a pitot static tube. Field tested and ideal for installation and maintenance work in and around ventilation and air conditioning.The Testo 510 digital manomenter is an all in one, low pressure measurement solution. The 510 can measure total external static pressure, differential pressure, duct velocities, manifold pressures, and air flow with pitot tube (optional).Features
* 0 to 40" H2O pressure measurement range
* Temperature compensated pressure sensor
* Magnetic backing for hands free use
* Air flow measurement with optional pitot tube
* User adjustable air density compensation
* Protective cap for safe storagehe testo 510 is very handy, small and easy to operate. It measures differential pressure in a range of 0 to 40 in H2O. The
differential pressure measurement is temperature-compensated for accurate measurement values which can be displayed in Inches of Water Column over the entire measurement range. Magnets on the back of the 510 permit hands free work. The backlit display allows the measurement values to be easily read out, even in unfavorable light conditions. The testo 510, in combination with an optional Pitot tube, measures air flow velocity. For accurate measurement values, the air density can be compensated.Specification

Measuring Range	0 to 40 InHO / 0 to 100 hPa
Accuracy	±0.01 InHO (0 to 0.12 InHO) / ±0.03 hPa (0 to 0.30 hPa), ±0.02 InHO (0.12 to 0.40 InHO) / ±0.05 hPa (0.31 to 1.00 hPa), ±(0.0 InHO + 1.5 % of mv) (0.40 to 40 InHO) / ±(0.1 hPa + 1.5 % of mv) (1.01 to 100 hPa)
Dimensions	5 x 2 x 1 in. / 119 x 46 x 25 mm
Operating temperature	32.0° to 122.0 °F / 0 to +50 °C
Protection class	IP40
Warranty	2 years
Seceltable units	hPa, mbar, Pa, mmH2O, inHO, inHg, mmHg, psi, m/s, fpm
Maximal static pressure	7.3 psi / 500 mbar
Measuring rate	0.5 sec
Battery type	2 AAA batteries
Battery life	50 h (average, without display illumination)
Storage temperature	-40.0° to 158.0 °F / -40 to +70 °C
Weight	3 oz. (with batteries and protective cap) / 90 g (with batteries and protective cap)
