Multistage up-Folw Coarse Pressure Screen for Waste Paper Pulp

Product Description

Product Description Pressure Screen is an international advanced paper pulp screening equipment for paper mills. Our company adopts advanced technology and designs to produce new types of pulp mid-consistency screening equipment. The pulp screening equipment Pressure screen is used for wood/straw pulp hot screening and chemical, paper pulp coarse, and fine screening.
This pressure screen has better adaptation, less power &water consumption, and high efficiency when compared with common low-consistency pressure screens.

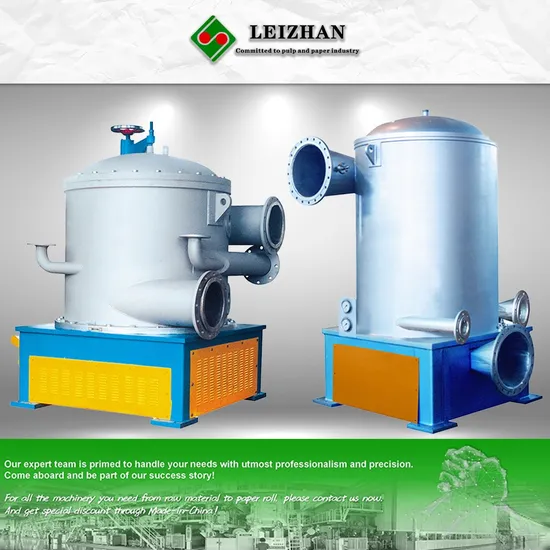

Detailed Photos
Product Parameters FEATURE:
1. Under the pressure of centrifugal movement from the rotor, the impurity moves around the outside part of the screen basket. Since the impurity moves quite far away from the screen basket, the service life of the screen basket can be increased due to less wear.
2. The pulp rotating movement offsets some part of the positive pulse at the moment that it flows through the rotor, thus the positive pulse created by the rotor decreases, which results in mild screening of impurities from the pulp.
3. Lower pulse helps in sending pulp into the headbox of the paper machine in a stable condition so that the paper machine can run stably and fewer broken ends can be created.
4. The design of the inflow approach screen helps in more throughput, lower energy consumption, higher screening efficiency, and less rejects.

Type	LZHYJ100	LZHYJ200	LZHYJ300	LZHYJ400	LZHYJ500	LZHYJ600
Screen Area:m2	0.6	0.8	1.2	2	3.2	4.2
The pressure of inflow pulp:Mpa	0.15-0.35
Width of screen slot : mm	0.12-0.25
Screen Consistency:%	0.8-2.0
Flow Rate:t/d	35-60	50-80	80-130	130-220	200-350	270-500
Power of Motor:kw	30	37	45	90	132	160
