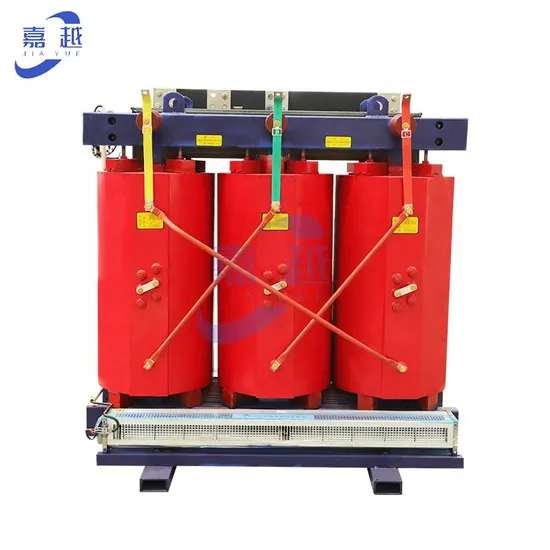

350kVA Compact Transformer for Laboratories with Enhanced Durability High Voltage Distribution Transformer Price

Product Description

Product Description
1. We can provide SCB9 series, SCB10 series, SCB11 series, SCB13 series, etc..epoxy cast resin dry-type power transformers. 2. Max capacity 25mva, Max voltage 110Kv
3.Customized solutions for various applications Higher Short -circuit Strength
All of our products have passed the national type experiment and China's national compulsory product certification CCC, CE,SGS,CQC certification,etc., and have a complete quality, occupational health, and environmental management system certification system. Annual production the capacity is 75 million kVA. Dvantages of cast resin dry-type transformers
* Simple maintenance: seldom need any maintenance.
* They are pollution-free
* They are used in the areas of contaminated and damped
* They are easier to Install.
* They have long servie life because of the dielectric heating & low thermal
* Protects the property & people
* For short circuit currents, they have high resistance
* Performance is excellent Product Parameters

SCB10(11) Series 10kV Dry-type transformers technical parameters
Rated Capacity kVA	Voltage Combination			Vector group	Off-load Loss (W)	On-load Loss (W) (120ºC)	Short Circuit Current (%)	Impendance (%)	Weight (kg)	Dimensions(mm)
	High Voltage (kV)	Tapping Range (%)	Low Voltage (kV)						Total	Length	Width	Height
30	6 6.3 10 10.5 11	±5 or ±2×2.5	0.38 0.4 0.415 0.433	Dyn11 or Yyn0	190/170	710	2.3	4	240	580	360	629
50					270/250	1000	2.2		315	650	360	664
80					370/340	1380	1.7		420	780	460	684
100					400/360	1570	1.7		485	840	460	729
125					470/430	1850	1.5		590	870	460	754
160					540/490	2130	1.5		690	880	460	764
200					620/560	2530	1.3		820	960	920	786
250					720/650	2760	1.3		965	1000	920	831
315					880/800	3470	1.1		1090	1020	920	861
400					980/890	3390	1.1		1285	108	970	906
500					1160/1020	4880	1.1		1430	1100	1020	921
630					1340/1180	5880	0.90		1705	1290	1170	906
630					1300/1130	5960	0.90	6	1705	1290	1170	906
800					1520/1330	6960	0.90		2065	1360	1170	936
1000					1770/1550	8130	0.90		2390	1390	1220	1001
1250					2090/1830	9690	0.90		2905	1450	1220	1081
1600					2450/2140	11730	0.90		3405	1500	1270	1146
2000					3050/2720	14450	0.70		4095	1560	1320	1326
2500					3600/3200	17170	0.70		4835	1630	1370	1297
SCB13 Series 10kV Dry-type transformers technical parameters
30	6 6.3 10 10.5 11	±5 or ±2x2.5	0.38 0.4 0.415 0.433	Dyn11 or Yyn0	150	710	2.3	4
50					215	1000	2.2		468	1150	980	1030
80					295	1380	1.7		684	1200	980	1060
100					320	1570	1.7		756	1060	880	1090
125					375	1850	1.5		978	1290	1000	1140
160					430	2130	1.5		1032	1320	1000	1140
200					495	2530	1.3		1200	1320	1000	1160
250					575	2760	1.3		1380	1340	1100	1180
315					705	3470	1.1		1572	1220	1300	1290
400					785	3990	1.1		1788	1270	1300	1390
500					930	4880	1.1		2316	1370	1350	1500
630					1070	5880	0.9		2364	1640	1350	1500
630					1040	5960	0.9		2736	1590	1450	1550
800					1215	6960	0.9		2736	1590	1450	1550
1000					1415	8130	0.9		3300	1670	1500	1630
1250					1670	9690	0.9	6	4056	1750	1500	1770
1600					1960	11730	0.9		4620	1860	1500	1770
2000					2440	14450	0.7		5400	1860	1500	1990
2500					2880	17170	0.7		6384	1980	1550	2040

Click here to consult product details
Packaging & Shipping
Packaging: Wooden case or according to client's requirements The requirements for the making and reinforcement of packing boxes were strictly in accordance with the international standards. Shipping: Land transportation/Ocean transportation Our products have been shipped all around the world, with an extensive logistic network, we provide the best transportation option for our clients.
Company Profile
Jiayues' the business scope includes production and sales of high and low voltage electric power transformer, box-type substation, power electrical complete sets of equipment integrated installation, maintenance and testing of power facilities, power engineering construction, production and sales of cable, etc.
The factory covers an area of 92,000 square meters and employs nearly 500 people.Our products fully comply with the national and industry standards required by the MeetInternational IEC standards for key performance indicators, ensuring operational efficiency, safety, environmental protection and reliability of the products, favored by customers at home and abroad.
Progress
FAQ Q: How do transformers been shipped?
A: Transformers always been delivered by ship,train or truck for oversea,which with main active body in bulk and accessories in wooden cases.
Q: Can your product be customerized?
A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions,our product can be customerized according to your requirements.
Q: Do you offer guarantee for the products?
A: Yes. We offer at least two years guarantee for all of our transformers.
Q: Do you accept FAT(Factory Acceptance Test)?
A: Yes. It's available. We are responsible for each set transformer's testing.
Q: Do you assign engineer for after-sale service?
A: Yes. For our products,we all show after-sale guide installation adn question inquiry
