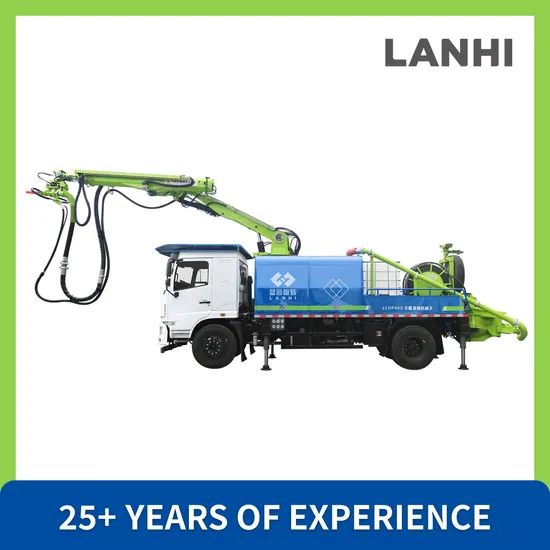

Best Underground Shotcrete Sprayer/Mining Concrete Spraying Machine - Lanhi Lgmp350d with Factory Price for Sale

Product Description

Product Description
The LGMP350D The intelligent integrated arch anchoring and spraying trolley, co-developed by Lanhai Intelligent Installation and the Sichuan Luqiao Tunnel Branch, is a state-of-the-art solution for initial tunnel support operations. Featuring an engineering chassis equipped with four-wheel drive, four-wheel steering, and bidirectional driving capabilities, this trolley is built for performance. Its upper body boasts a versatile three-arm full-sliding structure, three grab handles, two hanging baskets, under-excavation hammers, and anchor lever arms. This equipment is designed to handle the entire initial tunnel support process on-site, seamlessly connecting all construction processes within the tunnel. It significantly boosts construction efficiency while minimizing safety hazards and occupational injuries.
Functional Integration: The intelligent integrated arch anchoring and spraying trolley encompasses the entire tunnel initial support process, including initial spraying, measuring and setting points, under-excavation operations, arch frame installation, advanced support, system anchor construction, anchor net installation, and shotcrete operations, ensuring a comprehensive and efficient workflow.
Equipment Digitization (Optional): Optional digitization features include cluster management, positioning, video surveillance, walkie-talkie functionality, pre/alarm functions, data management, tunnel BIM technology and digital twin, construction report management, tunnel contour scanning, and remote control, providing a modern, tech-savvy approach to tunnel construction.
Large Capacity Shotcrete: Capable of delivering up to 50m³/h, this heavy-duty equipment ensures high spraying efficiency and minimizes pipeline clogging.
Reduced Manpower Requirements: Streamline your operations with only 3-4 personnel needed to complete tasks that traditionally require 8 or more workers, enhancing productivity and reducing labor costs.
Auxiliary Function Integration: Equipped with a breaker hammer and welding machine, this equipment can perform under-excavation processing and welding operations during arch installations, adding to its versatility.
High Efficiency: Featuring three arms, three grippers, and a multi-degree-of-freedom manipulator, the equipment offers a maximum grabbing force of 3 tons on the middle arm. This meets the demands for the installation of prefabricated arches, various benching method operations, and precise positioning and adjustment of the arch frame. Completing all necessary construction procedures takes about one hour.
Installation of Prefabricated Arch Frames: Leveraging our patented multi-frame prefabricated segmented assembly and folding arch frame installation techniques, arch frames are produced outside the tunnel. This method reduces the time spent on dangerous surfaces, mitigates construction safety risks, and significantly enhances overall efficiency.
Product Parameters

Transport dimensions (L × W × H)	13800×3900×3920mm
Total weight	51t
Engine power	142kW
Installed electrical power	163kW
Operating mode	Electric construction + diesel-powered emergency
Control mode	Wireless remote control + manual control
Operating voltage	380V
Operating range (width × height)	20×14m
Chassis form	Operating chassis
Driving mode	Bidirectional driving (front and rear dual cabs)
Driving and steering methods	Four-wheel drive, four-wheel steering
Minimum ground clearance	400mm
Maximum grade	25%
Turning radius	15m (two wheels) 8m (four wheels)
Maximum speed	25km/h
Approach angle/departure angle	17°/18°
Maximum spraying volume	50m³/h
Maximum particle size for spray aggregate	16mm
Hopper capacity	0.4m³
Capacity of quick-setting agent tank	1m³
Form of quick-setting agent pump	Squeeze pump
Arm support mode	Skid
Arm support quantity	3
Hanging basket mode	Expandable
Number of hanging baskets	2
Number of grippers	3
Maximum lifting capacity of middle arm	3t
Maximum lifting capacity of left and right arms	1.5t
Number of rock drills	2
Power of rock drills	18kW
Maximum drilling depth	4.5m
Drilling diameter	Φ41~Φ102mm
Discharge volume	0.89m³/min
Discharge pressure	0.8MPa
Flow rate	8m³/h
Pressure	20bar
Welding machines	3 sets
Breaking hammers	2 sets
Grouting system	Options

Detailed Photos
FAQ
1. What can you purchase from us?
Our main products include cutting-edge solutions for underground engineering machinery and advanced intelligent mining equipment. Our portfolio encompasses tunnel boring machines, integrated arch anchoring and spraying trolleys, arch anchoring trolleys, integrated arch drilling trolleys, arch frame installation trolleys, wet spraying rigs, and rock drilling rigs. We take pride in offering our clients comprehensive, integrated total solution services to meet their unique needs.
2. What is the Minimum Order Quantity (MOQ)?
The Minimum Order Quantity (MOQ) for our products is 1 set.
3. What payment terms are available?
We accept T/T with a 50% prepayment to facilitate a smooth transaction process.
4. What is the order lead time?
Our standard lead time for orders is approximately 15 days, ensuring timely delivery.
5. What logistics methods are available for shipment?
We offer versatile shipping options including truck delivery across Central Asia and Russia, as well as rail and sea shipping to accommodate your logistical preferences.
6. What is your delivery time?
Delivery time via China-Europe trains is typically between 15 to 20 days, while sea shipping ranges from approximately 2 to 3 months.
7. How is your customer service and after-sales support?
We provide exceptional 24/7 online support and robust after-sales service in Russia and Central Asia, ensuring your complete satisfaction.

---
