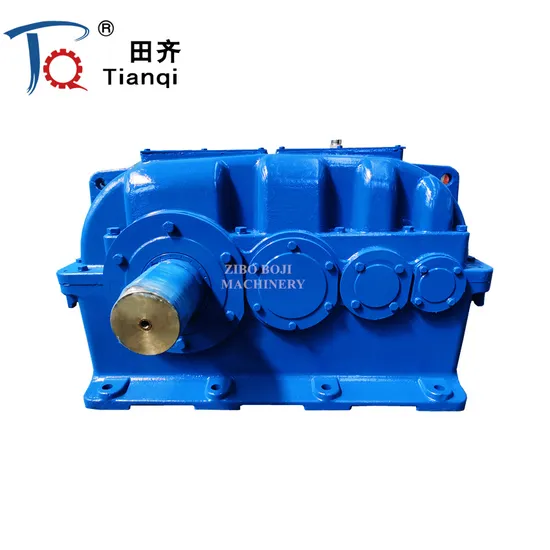

Zdy / Zly / Zsy / Zfy Series Speed Reducer Hard-Toothed Surface Gearbox Helical Gear Box

Product Description

PROFESSIONAL MANUFACTURE
-- SINCE 1995
ZDY / ZLY / ZSY / ZFY series speed reducer hard-toothed surface gearbox helical gear box
Chinese electric motor speed reducer is widely used in mining machinery, chemical industry,steel metallurgy, lightindustry,environmental protection, paper making, printing, lifting transport, food industry and so on. Main Series Product: R series helical gear motor reducer, K series spiral bevel gear reducer, NGW, P series planetary gear reducer, H B series helical gearbox, Z (ZDY, ZLY, ZSY, and ZFY) serial hard tooth surface cylindrical gearbox reducer, D (DBY and DCY) serial hard tooth surface cone gear reducer, cycloidal speed reducer, etc. Meanwhile, map sample processing business can be undertaken.Product Description
Realized parallel shaft,right-angle shaft modes and horizontal,vertical mounting modes. Using less component parts.
Applying advanced grinding process which improved the stability and the efficiency of transmit power with lower noise.
Mounting mode:foot-mounted,flange-mounted,swing base-mounted,torque-arm-mounted.
Ratio range:1.23~450. It will be higher when combining with K&R series reducerProduct Parameters

Type	Input Speed r/min	Transmission Ratio	Type	Input Speed r/min	Transmission Ratio	Type	Input Speed r/min	Transmission Ratio
ZDY80100125160200250280315355400450500560	750	1.251.41.61.822.242.52.83.153.5544.555.66.3	ZLY112125140160180200224250280315355400450500560630710	750	6.37.1891011.212.514161820	ZSY160180200224250280315355400450500560630710	750	22.4252831.535.54045505663718090100
	1000			1000			1000
	1500			1500			1500

Model selection for washing machine Gear Box Transmission:
Closely using the ideal reduction ratio.
Reduction ratio = servo motor speed / reducer output shaft speed
Torque calculation: Torque calculation is very important for the life of reducer, and pay attention to whether the maximum torque value (TP) of acceleration exceeds the maximum load torque of the reducer.
The applicable power is usually the applicable power of the servo models on the market, the applicability of the reducer is very high, the working coefficient can be maintained above 1.2, but the choice can also be based on their own needs to decide. industrial helical gearbox. H PV series High quality Right Angle Unique speed reducer HB helical gearbox / gear box.
Detailed PhotosChinese Speed Reducer/industrial helical gearbox is a mechanical transmission in many fields of the national economy. The product categories covered by the industry include all kinds of gear reducer, planetary gear reducer and worm reducer, as well as various special transmission devices such as speed increasing device, speed control Devices, including various types of flexible transmission devices, such as compound transmission. Products and services in the field of metallurgy, nonferrous metals, coal, building materials, ships, water conservancy, electricity, construction machinery and petrochemical industries.
In all fields of national economy and national defense industry, gearbox products have a wide range of applications. Food light industry, electric machinery, construction machinery, metallurgy machinery, cement machinery, environmental protection machinery, electronic appliances, road construction machinery, water conservancy machinery, chemical machinery, mining machinery, conveyor machinery, building materials machinery, rubber machinery, petroleum machinery and other industries have strong demand of Reducer products.
Packaging & Shipping
Application

Driven machines
Waste water treatment	Thickeners,filter presses,flocculation apparata,aerators,raking equipment,combined longitudinal and rotary rakes,pre-thickeners,screw pumps,water turbines,centrifugal pumps	Dredgers	Bucket conveyors, dumping devices, carterpillar travelling gears, bucket wheel excavators as pick up, bucket wheel excavator for primitive material, cutter head, traversing gears
Chemical industry	Plate bending machines, extruders, dough mills, rubbers calenders, cooling drums, mixers for uniform media, agitators for media with uniform density, toasters, centrifuges	Metal working mills	plate tilters, ingot pushers, winding machines, cooling bed transfer frames, roller straigheners, table continuous intermittent, roller tables reversing tube mills, shears continuous, casting drivers, reversing blooming mills
Metal working mills	Reversing slabbing mills. reversing wire mills, reversing sheet mills, reversing plate mill, roll adjustment drives	Conveyors	Bucket conveyors, hauling winches, hoists, belt conveyors, good lifts, passenger lifts, apron conveyors, escalators, rail travlling gears
Frequency converters		Reciprocating compressors
Cranes	Slewing gears, luffing gears, travelling gears, hoisting gear, derricking jib cranes	Cooling towers	Cooling tower fans, blowers axial and radial
Cane sugar production	Cane knives, cane mills	Beet sugar production	Beet cossettes macerators, extraction plants, mechanical refrigerators, juice boilers, sugar beet washing machines, sugar beet cutter
Paper machines	Pulper drives	Cableways	Material ropeways, continuous ropeway
Cement industry	Concrete mixer, breaker, rotary kilns, tube mills, separators, roll crushers

Company Profile
Established in 1995 , Zibo Boji Machinery is a professional manufacturer and exporter that is concerned with the design, development and production of Gearbox Speed Reducer. We are located in Zibo of Shandong Province, with convenient transportation access. With our own brand "TianQi", all of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our company possesses complete machining center, lathe, gear shaping machine, gear milling machine, gear grinding machine and assembling lines. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
Besides, In 2005,we attained ISO9001 certification. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South America, Saudi Arabia, Vietnam, Pakistan, Philippines, South Africa and other countries and regions.
With rich export experience, high quality products, competitive prices, good service and in-time delivery, we certain that we can meet all of your requirement and exceed your expectations. Our feature is bright with new cooperative relationships with companies from all over the world. We look forward to speaking with you to future discuss how we can be of service to you.
FAQ1. Who are we?We are the Factory, with over 25 years of production experience, based in Shandong, China, start from 1995,sell to Domestic Market(50.00%),Mid East(10.00%),Southeast Asia(10.00%),Western Europe(5.00%),South America(5.00%),Eastern Europe(5.00%),Eastern Asia(5.00%),North America(3.00%),Africa(2.00%),Southern Europe(2.00%),South Asia(2.00%),Central America(1.00%). 2. Can you customize according to our requirements?Yes, we can design nonstandard products according to customer's drawing and sample.3.What can you buy from us?speed reducer,gearbox,gear motor,pump,crusher4. Why should you buy from us not from other suppliers?Founded in 1995, with over 20 years of production experience and credibility. With professional engineer team, advanced technology production and skilled workers.Specialized in the production of reducer. Map sample processing business can be undertaken.5. What services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
