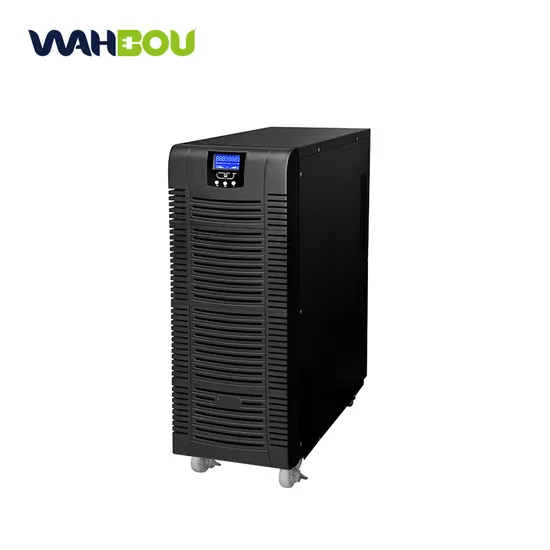

Wahbou Data Center UPS St05 20kVA Online UPS High Frequency Power Supply

US$85.00-1,199.00 1 Set (MOQ)

Basic Info.

Model NO.
ST33 20KS
Protection
Overvoltage
Application
Communication
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Small Type
Equipment Mode
Decentralized
Brand
Wahbou
Output Power Factor
0.9
Input Voltage Range
207-475VAC
Working Frequency Range
40-70Hz(Settable)
Input Power Factor
>=0.99
Charger Current
Settable 1~6A(Customizable)
Transport Package
Neutral Carton Box
Specification
710x260x717mm
Trademark
WAHBOU or OEM
Origin
Guangdong, China
HS Code
8504402000
Production Capacity
100000 Sets/Year

Packaging & Delivery

Package Size
72.00cm * 30.00cm * 72.00cm
Package Gross Weight
60.000kg

Product Description

Wahbou Data Center UPS St05 20kVA Online UPS High Frequency Power Supply 192Vdc/240Vdc
Our Advantages
Product Description
Product Parameters
Model VT33 10KVA VT33 10KS VT33 20KVA VT33 20KS VT33 30KS VT33 40KS
Rated Power 10kVA/9kW 20kVA/18kW 30kVA/27kW 40kVA/36kW
Input Voltage Range 207-475Vac 3P4W+G
Working Frequency Range 40-70Hz (settable)
Input Power Factor ≥0.99
Output Rated Voltage and Accuracy 380Vac(1±1%) 3P4W+G
Output Frequency 46-54Hz synchronize with mains power; 50Hz (Mains power between 40-46Hz and 54-60Hz ); 50Hz(Battery)
Rated Current 15A 30A 45A 61A
Output Power Factor 0.9
Output Harmonic Wave ≤3% (Full R load)
Crest Factor 3: 1
Output Overload 105%±5%<Load≤125%±5%: Convert to bypass output and alarm after 1min;
125%±5%<Load≤150%±5%: Convert to bypass output and alarm after 30s;
Load>150%±5%: Convert to bypass output and alarm after 300ms.
Conversion time between Mains Power and Battery 0ms
Efficiency >92% >91%
Battery Rated Voltage 192Vdc ±192Vdc
Quantity 16 32
Charging Current 1A 5.5A 1A 7.5A 5.5A
Dimension (LxWxH) mm 560x260x717 533x260x501 710x260x717 710x260x717
Weight 72kg 26kg 98kg 57.5kg 58.5kg 62kg
Working Temperature 0ºC-40ºC
Working Humidity 20%-95% (non-condensing)
Noise ≤60dB
Detailed Photos
Company Profile
Certifications
Applications
Exhibition & Customer Visit
If any questions please contact our sales, and you are welcome to visit us anytime!
