High Carbon Wire Rope Straight Continous Wire Drawing Machine

Product Description

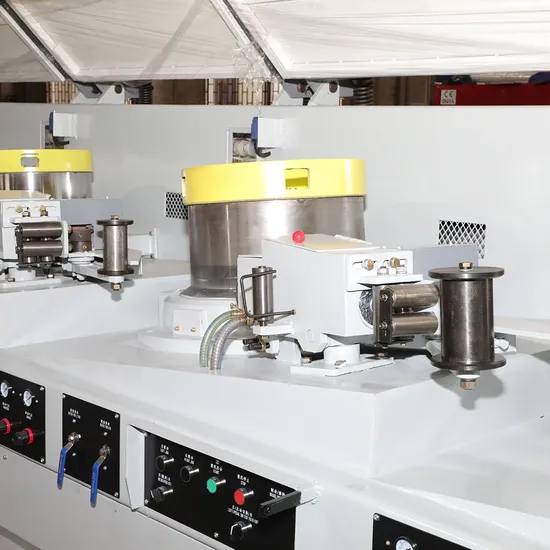

HIGH QUALITY & HIGH SPEED STRAIGHT LINE WIRE DRAWING MACHINE
Machine frame: Steel welding framework, all covered up dust free, with transparent organic glass panel in front showing movements inside during normal operation.
Capstan: round rolling forming by high strength manganese steel plate then via carburizing and quenching.
Surface treatment: layer welding by alloy welding rod and polishing, spray welding by tungsten carbide.
Cooling: Normal pressure water cooling plus high pressure air cooling.
Die box: dry & wet drawing normal die box, rotating die box
Transfer system: Italian brand gearbox plus belt transmission.
Electric cabinet details:
PLC: Siemens
Touch screen: Siemens
Inverter: Yaskawa, ABB, Schneider, Siemens
Circuit breakers and contactors: Schneider
Technical Parameter:

Model	Block Dia.(mm)	Max. Draw Passes	Max.Inlet Wire Dia. (mm)	Min.Outlet Wire Dia. (mm)	Motor Power (KW)	Max.Outlet Speed(m/s)	Noise Level (dBA)
LZ-200	200	≤15	2.2	0.25	4.0-5.5	22	≤81
LZ-250	250	≤15	2.6	0.4	4.0-7.5	22	≤81
LZ-300	300	≤15	2.8	0.5	5.5-7.5	22	≤82
LZ-350	350	≤15	3.5	0.6	5.5-11	22	≤82
LZ-400	400	≤15	4.2	0.75	11-15	22	≤82
LZ-450	450	≤15	4.5	0.8	11-22	20	≤82
LZ-500	500	≤15	5.0	1.2	15-30	20	≤82
LZ-560	560	≤15	5.5-6.5	1.3	22-45	20	≤82
LZ-600	600	≤15	6.5-7.0	1.35	30-55	20	≤82
LZ-650	650	≤15	7.0	1.5	30-55	18	≤82
LZ-700	700	≤15	8.0	1.8	45-75	18	≤82
LZ-750	750	≤15	8.0	2.0	45-75	16	≤82
LZ-800	800	≤15	10	2.5	55-90	16	≤82
LZ-900	900	≤15	12	3.0	75-110	16	≤82
LZ-1000	1000	≤15	14	3.5	90-132	15	≤82
LZ-1200	1200	≤15	16	4.0	90-132	14	≤82
LZ-1400	1400	≤15	20	5.5	90-160	10	≤82

---
