Economic Hcm-1600 Honeycomb Core Machine

Product Description

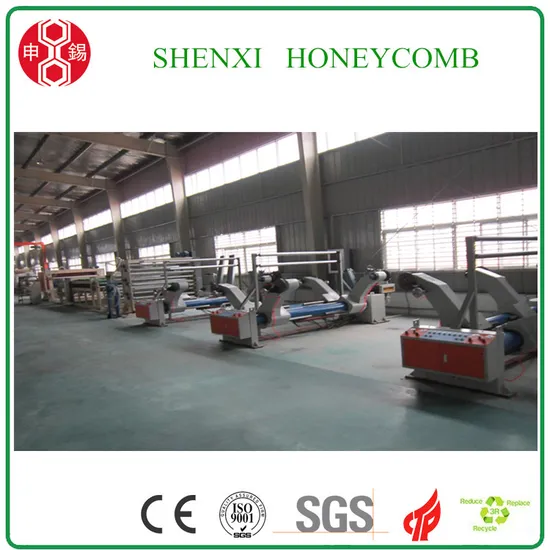

1.Full-automatic Honeycomb Core Machine
1.1 Description
This machine is the newest type of honeycomb core making machine. It use 4-8 layers of medium paper to unwind, apply glue, heat, press and cut, to get the paper honeycomb in one stop.
It has two kinds of glue applying system: glue roller applying & glue pipe system. Customers can choose proper model according to your local glue supply.
In this machine, glue break function can be added, to make honeycomb slice /block for door and furniture factory.
Features: Shenxi honeycomb core machine, whole line chooses Schneider, Omron, Delta/Mitsubishi , SEW or Yongyuan motors, all belongs to international brand, which can be found in local market. Blades in honeycomb core cutter, use tungsten steel blade, HRA 85-90. One set of honeycomb blades can be used for continuous cutting (8 hours a day ) for over 3 months without sharpening. Gluing system , no matter in roller type or glue pipe system, quick change cell size. 5-10 minutes to change different cell sizes. Height setting controlled by servo motor, all computerized, set on touch screen, simple and easy. 2 minutes to change a different honeycomb height. With aluminum 7075 as the reciprocating knife frame, lighter but stronger for high speed cutting. Honeycomb cutter, can produce the paper honeycomb from 6-100mm in one machine, a high variety of all products in market.
1.2.Specification

No.	Item	HCM-2000
1	Thickness of honeycomb paperboard	6-100mm
2	Width of paper core (before expanding)	2000mm
3	Honeycomb core cutting speed	0-800 cuts/min.(decided by thickness)
4	Cutting tolerance	+-0.1mm (with ring crush index over 7.0 Nm/g, thickness less than 50mm)
5	Applicable paper	90-200gsm corrugated paper as core paper(over 200gsm, use 4 layers)
6	Qty of paper reels	6
7	Cell size	8-40mm (according to customer choice, choose two cell sizes)
8	Heating drying method	Electric heating /steam heating (according to customer condition)
9	Total Engine power	42KW
10	Installation power	70kw (electric heating system)
11	Normal working power consumption	30-40kw (electric heating)
12	Man power	3
13	Layout	28000X4500X3000mm
14	Weight	30 Tons
15	Power supply	Three phases, 380V/50Hz

---
