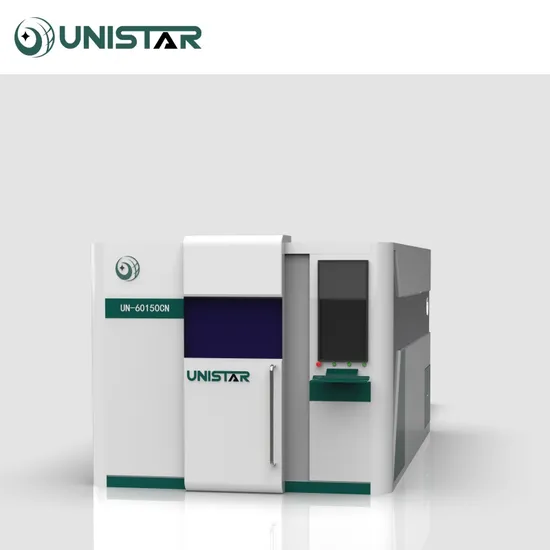

Fully Enclosed and Dual Exchange Table Fiber Laser Aluminum Cutting Metal Plate Fiber Laser Cutter with Full Covered 1530 2040 1560

Product Description

Product Description
Fully Enclosed and Dual Exchange Table Fiber Laser Aluminum Cutting Metal Plate Fiber Laser Cutter with full covered 1530 2040 1560
Full surround laser cutting machine features:
1. The whole machine adopts large enclosed closed cutting processing to provide a good operating environment; Adapt to the environmental protection requirements of various regions.
2. The whole industrial camera has no dead Angle tracking and monitoring, to achieve the entire intelligent operation of laser equipment
3. Adopt imported servo motor and precision guiding transmission mechanism, high cutting precision;
4. The use of professional laser nesting software can be designed at will all kinds of parts instant processing;
5. The product is easy to operate and maintain, suitable for different plate cutting.
Large surrounding exchange table advantages:
Fully protected fiber laser cutting machine using a fully enclosed laser protective cover, detailed parts layout makes the whole machine more stable, comfortable, precise, science and technology. Equipped with special laser protective glass observation window, equipped with scientific dust recovery and purification treatment system, the overall appearance, safety and environmental protection;
At the same time, the standard special exchange platform, fast exchange speed, convenient loading and unloading, high processing efficiency; Is a high-end plate laser cutting special equipment, is the preferred product of modern manufacturing enterprises.
Material application: stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver and other metal plate cutting
Product Parameters

Series number	Description	Specification	Unit
Brand	UNISTAR LASER	UN-6015A	1
1	Working area	6000*1500mm	mm
2	Laser Source	IPG/Raycus/Trumph/Max/Reci	1
3	Laser Power	1000W /1500W/2000W /3000/6000w/12Kw/20Kw/30KW	W
4	Packing Size	4200*2250*1900	mm
5	X/Y Max Speed	120	m/min
6	Maximum acceleration	1.5G	m/s2
7	X/Y axis positioning accuracy	+0.03	mm
8	X/Y axis repeat positioning accuracy	+0.02	mm
9	Voltage	380	V
10	Phase	3	phase
11	Hertz	50/60	Hz
12	Warranty Time	3	Year
13	Maximum bearing capacity	600	Kg
15	Weight	2000	Kg
16	X axis servo motor	Japan Yaskawa/ FUJI /Delta	1
17	Y axis servo motor	Japan Yaskawa/FUJI/Delta	2
18	Z axis servo motor	Japan Panasonic /Fuji/Delta	1
19	Warranty Time	2	Year

Detailed Photos

Cutting head The whole cutting head is composed of collimator, focusing mirror, protection mirror, it can guide the laser beam to the metal, and the head includes a focusing mirror to make the light finer and the energy more concentrated.


Fiber laser source The laser source is the heart of any fiber laser cutting machine, which determines the precision, speed and quality of the cutting. The power of the laser source (in kilowatts (kW)) directly affects the cutting speed and thickness capability of the machine. The higher the power of the laser, the faster it can cut thicker materials.

Exchange platform:It adopts an up and down exchange platform, and the converter is responsible for controlling the exchanging motor. The machine is able to finish the platform exchanging within 15s.

Japanese Fuji servo motor and driver: Small motor, low noise, low vibration design, improve production efficiency, energy-saving design in line with national standards, safety and environmental protection. It can have a quiet production environment, powerful power, strong durability, improve production efficiency, energy-saving design in line with national standards, safety and environmental protection.

Control System Panel - Laser cutting control system is the "brain" of laser cutting equipment, which can help the equipment to achieve automation and intelligence. The control system is generally composed of hardware such as motion controller, servo system and load, and software such as control algorithm.

monitoring device
Intelligent monitoring, the use of interconnected dual screen design, operating equipment at the same time, real-time understanding of the cutting situation
Exhaust equipment
Using the latest smoke control technology, each section of the bed is equipped with smoke exhaust equipment, effectively filter toxic gases, delay, improve purification efficiency, refuse lens pollution to make the production process more green

Aviation aluminum gantry
Aluminum profile beams for the aviation industry can make the equipment have efficient dynamic performance, greatly improve the processing efficiency, while ensuring the processing quality.

samples
Company Profile

Jinan Unistar Machinery Co.,LTD,was established in 2002,experienced more than twenty years of development and solid operation,the company has 20 professsional research senior technical engineers in the field of laser,100 sales team,30 domestic and foreign after-sales service team,150 workers,with strong new product development ability.... OUR PARTNERS

Customer With Us
Packaging & Shipping
FAQ

---
