High PV Efficiency Topcon Solar Panel 430-455watt Solar Energy System Solar Panels for Home, Submersible Water Farm Pasture Pump Mn-Hc

Product Description

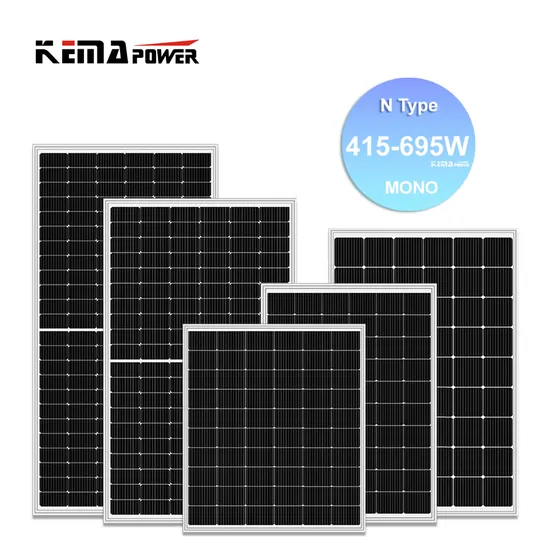

N Type TOPCon Mono Solar Panel
MN-HC415-695W KEY FEATURES N Type TOPCon Technology Modules with Highest Efficiency Cell Low Iron Tempered Solar Glass Schottky Type Bypass Diode Multi-contact Connectors, Watertight Terminal Box Clear Anodized Aluminum Frame Tedlar (TPT) Back Sheet EVA Sheet of Double Side TUV,CE Certificated Excellent anti-LeTID & anti-PID performance Low power degradation, high energy yield High salt mist and ammonia resistance Allowable Hail Load up to 5400Pa; Maximum Load Capacity 2400Pa GENERAL SPECIFICATIONS

Temperature Coefficients of Isc (%)ºC		0.052	Allowable Hail Load		5400Pa.
Temperature Coefficients of Voc (%)ºC		-0.29	Junction Box Type		IP68, 3 diodes
Temperature Coefficients of Pmax (%)ºC		-0.38	Front Cover		3.2mm(0.13inches) tempered glass with AR coating
Nominal Operating Cell Temperature(NOCT)		45±2°C	Cable & Connector Type		4mm²(0.006inches²),300mm(11.81inches) in length; MC4 or MC4 compatible
Operating Module Temperature		- 40°C to +85°C	Backing (Brand Type)		TPT
Power Tolerance		±3%	Standard Test Conditions		1000W/m2, Cell temperature 25°C, AM1.5;
Surface Maximum Load Capacity		2400Pa	Frame		Anodized aluminum alloy
Warranty		20 years product warranty,30 years linear power output warranty

TECHNICAL SPECIFICATIONS
The following are the conventional model only,it's welcome to design based on customer requirement

MODE	Power (w)	Size of cells (mm)	Number of cells (pcs)	Module efficiency	Max Power Current(A) (IMP,Amp)	Max Power Voltage(V) (VMP,Vdc)	Short Circuit Current(A) (ISC,Amp)	Open Circuit Voltage(V) (VOC,Vdc)	Cable with Connector (Meter)		Max system Voltage (VDC)	Module size(mm)	Weight (Kg)	Rated Fuse (Amp)
7M108N-HC415	415W	182*91	6*9*2	21.25%	13.20	31.44	13.97	37.83	4mm2, Length: Portrait: 300mm; Landscape: 1200mm	MC4	1500	1722*1134*30	21	25A
7M108N-HC420	420W			21.51%	13.28	31.63	14.05	38.02
7M108N-HC425	425W			21.75%	13.36	31.81	14.13	38.21
7M108N-HC430	430W			22.02%	13.44	31.99	14.21	38.40
7M108N-HC435	435W			22.28%	13.53	32.16	14.34	38.59
7M108N-HC440	440W			22.53%	13.62	32.31	14.44	38.78
7M144N-HC560	560W	182*91	6*12*2	21.67%	13.28	42.17	14.06	50.63	4mm2, Length: Portrait: 300mm; Landscape: 1300mm	MC4	1500	2279*1134*30	28	25A
7M144N-HC565	565W			21.86%	13.34	42.35	14.12	50.83
7M144N-HC570	570W			22.06%	13.41	42.51	14.18	51.03
7M144N-HC575	575W			22.25%	13.47	42.69	14.24	51.23
7M144N-HC580	580W			22.44%	13.53	42.87	14.30	51.43
7M144N-HC585	585W			22.64%	13.59	43.05	14.36	51.63
8M120N-HC615	615W	210*105	6*10*2	21.73%	17.62	34.90	18.67	42.16	4mm2, Length: Portrait: 300mm; Landscape: 1300mm	MC4	1500	2172*1303*35	31.5	30A
8M120N-HC620	620W			21.91%	17.66	35.11	18.72	42.35
8M120N-HC625	625W			22.84%	17.70	35.31	18.77	42.54
8M120N-HC630	630W			22.26%	17.74	35.51	18.82	42.73
8M132N-HC675	675W	210*105	6*11*2	21.73%	17.60	38.35	18.64	46.31	4mm2, Length: Portrait: 300mm; Landscape: 1400mm	MC4	1500	2384*1303*35	34	30A
8M132N-HC680	680W			21.89%	17.64	38.55	18.69	46.50
8M132N-HC685	685W			27.36%	17.68	38.74	18.74	46.69
8M132N-HC690	690W			22.21%	17.72	38.94	18.79	46.88
8M132N-HC695	695W			23.37%	17.76	39.13	18.84	47.07

7M108-HC 415-440W
7M144-HC 560-585W
8M120-HC 615-630W
8M132-HC 675-695W Company Profile

---
