Product Details
Product Description
Product Description

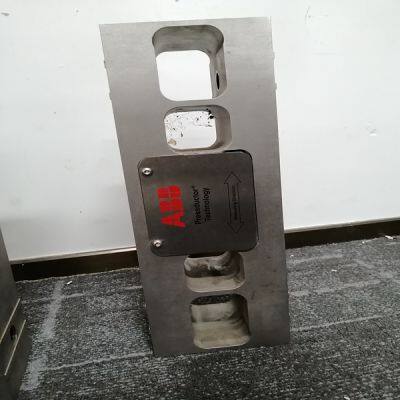

Brand: ABB
Type:PFTL101B 5.0KN 3BSE004191R1
Origin: the Swiss
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
LEDs Four LEDs on the Power Supply indicate: ▪ Power (Green/Amber). When this LED is green, it indicates power is being supplied to the backplane. When this LED is amber, power is applied to the Power Supply but the Power Supply switch is off. ▪ P/S Fault (Red). When this LED is lit, it indicates the Power Supply has failed and is no longer supplying sufficient voltage to the backplane. ▪ Over Temperature (Amber). When this LED is lit, it indicates the Power Supply is near or exceeding its maximum operating temperature. ▪ Overload (Amber). When this LED is lit, it indicates the Power Supply is near or exceeding its maximum output capability on at least one of its outputs. The CPU Fault Table shows a fault if any Overtemperature, Overload, or P/S Fault occurs. On/Off Switch The ON/OFF switch is located behind the door on the front of the module. The switch controls the operation of the outputs of the supply. It does NOT interrupt line power. A projecting tab next to the switch helps prevent accidentally turning it on or off. Wiring Terminals Terminals for +24V and –24V power, ground, and MOV disconnect accept individual 14 to 22AWG wires.Specifications: IC695PSA040 Nominal Rated Voltage Input Voltage Range AC DC 120/240 VAC or 125 VDC 85 to 264 VAC 100 to 300 VDC Input Power (Maximum with Full Load) 70 Watts maximum Inrush Current 4 Amps, 250 milliseconds maximum * Output Power 40 Watts maximum total 5.1 VDC = 30 Watts maximum 3.3 VDC = 30 Watts maximum The maximum total output power available depends on the ambient temperature, as shown. Output Voltage 24 VDC: 19.2 VDC to 28.8 VDC 5.1 VDC: 5.0 VDC to 5.2 VDC (5.1 VDC nominal) 3.3 VDC: 3.1 VDC to 3.5 VDC (3.3 VDC nominal) Output Current 24 VDC: 0 to 1.6 Amps 5.1 VDC: 0 to 6 Amps 3.3 VDC: 0 to 9 Amps Isolation (input to backplane): 250 VAC continuous; 1500 VAC for 1 minute Ripple (all outputs) 150 mV Noise (all outputs) 150 mV Ride-through time 20 ms. This is the length of time the Power Supply maintains valid outputs if the power source is interrupted Wiring Terminals Each terminal accepts one 14 AWG to 22 AWG wire. Current per Terminal 6 Amps Number of Daisy-Chained PSA040 Supplies Up to 4 *
The Inrush Current specification is given as a guide for sizing the external power source for the IC695PSA040. Peak inrush current may be higher for shorter durations. Important Product Information Module Version IC695PSA040E Change for this Update The previous version of this Power Supply (C695PSA040D) incorrectly reported that it was a PSA140 power supply, causing a Configuration Mismatch error. The E version and versions prior to D report their identification correctly.
>>
