Fully Automatic Hot Drink Juice Beverage Blending Mixing Processing Plastic Bottle Filler Washing Filling Capping Labeling Line Machine

Product Description

Product Description

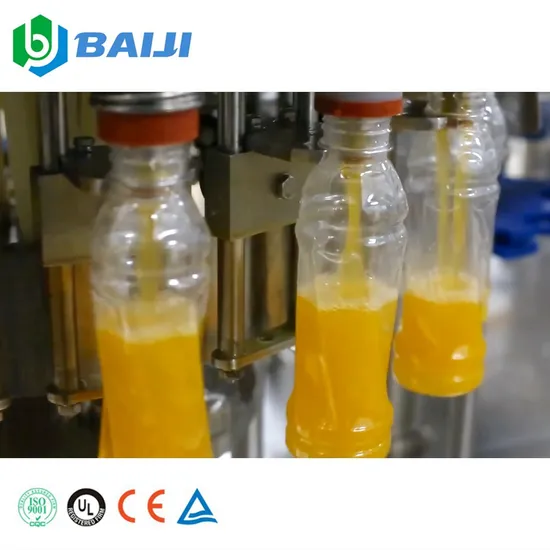

Fully automatic Hot juice beverage plastic bottle Filler washing filling capping machine
RCGF series of juice filling machine, it is used for bottling organic fruit juice and concentrate juice, fruit juice with additives, juice with pulp, coffee, flavoured water and so on.
3 in 1 juice filling machine: bottle washing, juice filling, capping
4 in 1 juice filling machine: bottle washing, pulp filling ( >3mm ), juice filling, capping
It is mainly designed for hot temperature liquid(85-90ºC). If temperature is lower than setting value, filling valves will stop, beverage return to UHT.

3 in 1 washing filling and capping machine
Volume	200ml - 2000ml
Bottle diameter(mm)	50-115
Bottle height(mm)	160-320
Filling temperature(ºC)	85ºC hot filling

Model	RCGF8-8-3	RCGF14-12-5	RCGF18-18-6	RCGF24-24-8	RCGF32-32-8	RCGF40-40-10	RCGF50-50-15
Capacity (500ml)	2000-3000	3000-4000	5000-6000	8000-10000	10000-12000	12000-15000	15000-20000
Application	fruit juice, concentrate juice, energy drink, tea beverage and so on.
Filling precision	≤±3mm(liquid level)
Suitable bottle specification	Volume= 100-2000ml Diameter φ=50- 115 Bottle height H= 150 ~320mm
Machine material	Food stage SS304 or SS316
Air source pressure (Mpa)	0.3-0.8
Filling way/principle	hot filling, 85ºC filling
Control System	PLC+ Touch screen
Features	No bottle no filling No bottle no capping
Power Supply	Voltage: 220V~415V, 3 phase Frequency: 50hz/60hz or your requirement
Main Motor(kw)	1.5	1.8	2.2	3.0	5.5	7.5	9.5
Dimension(mm)	2200*1600*1800	2400*1800*2700	2700*2200*2700	2800*2330*2700	3550*2650*2700	4360*3300*2700	4720*3545*2700
Weight(kg)	2800	3500	4500	5500	6500	7500	8500

Juice pretreatment systemSugar melting tank → syrup filter → blending tank → double filter → storage tank → homogenizer → storage tank → vacuum degasser → storage tank → plate type sterilizationPasteurization
It is usually used after fruit juice beverage finished hot filling and sealing, when enter the spray tunnel, the water with the function of high-pressure pump, uniformly spray on the bottle body. The bottles move slowly in the chain, when they are out the tunnel, they can reach the normal temperature, then achieve the purpose of cooling. This machine can also be used for secondary sterilization for fruit juice.
Automatic shrink sleeve labeling machine
It consists of auto labeling machine, heat shrink tunnel and steam generator.
It adopts international advanced technology, cover the circle label on the pet bottle. And then hot shrinking to fix on the
position which bottle body designated.
Automatic PE film wrapping machine
To pack several bottles into one package, make it easier for delivery.
You can have different group style, 24 bottles one package, 12 bottles one package, etc. It is changeable.
Main Products
Company ProfileZhangjiagang Baiji Machinery Co., Ltd. is a professional manufacturer of beverage machinery in China. Our main products have: water filling production line, juice filling production line, carbonated drink filling production line, beer, cooking oil, wine, sauce filling production line, and all other auxiliary equipment. The liquid can be PET bottled, glass bottled, aluminum canned, 5 gallon barreled and so on. We are not only a manufacturer of mechanical equipment, but also can provide customers with plant design, equipment layout, waterway, circuit and airway layout, etc. Our task is to ensure the smooth production of your factories and help you win your markets.
Company Advantage
Our Certificate
We are not only a manufacturer of mechanical equipment, but also can provide customers with plant design, equipment layout, waterway, circuit and airway layout, etc.
Exhibition
Packaging & Shipping
FAQQ: How to find Baiiji Machinery?
A: Our factory is located in Zhangjiagang City, close to Shanghai. We are a professional manufacturer of beverage machine for more than 10 years.
Q: If we purchase machines, what can you provide for us?
A: We can provide whole solution. We have professional engineers who analysis production demand based on customer market demand and customer budget . We can provide bottle shape design according to your require. We also can provide machine layout for you, according your factory figure plan. We will send our professional engineer to your factory as soon as you get all your machines ready, for installation, testing and teaching your technicians how to run the machines.
Q: When can we get our machine after we paid?
A: We will deliver machines on time as the date we agreed both side. Normally production time is around 30-60 working days. The exact time depends on what kinds of machine you ordered. The shipping time is based on your destination port.
Q: How can we know your machine works well?
A: Before delivery, we will test machine working condition for you. You can come to China. Check it!
Q: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you high quality machines with one year guarantee. During this period, we provide you spare part for free.

---
