Universal Milling Machine Rotary Head Knee-Type Milling Machine

Product Description

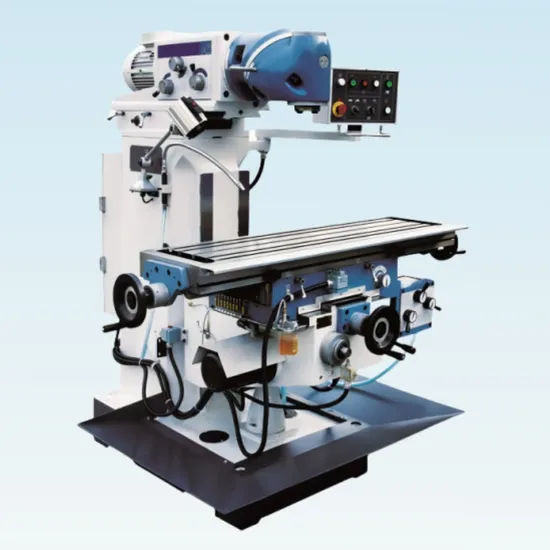

Product Picture
Features:
The vertical spindle has two main components. The angel of two rotation axis is 45degree.We can adjust the milling head to any space angle by rotating two main components, processing more conveniently. Horizontal spindle adopts three-support structure, increasing spindle rigidity, and dynamic braking system with large torque quickly stop and reliability. Y.Z axes of worktable can be both manual and motorized feed, and rapid feeding with high efficiency. X axis travel is 1000mm, which expands the process range. X, Y,Z axes guidways adopt harden and grinding, high accuracy and long life. The transmission gear use several lubrication forms like centralized lubrication. oil-immersed lubrication, hand-operate lubrica.ation, oil cup fixed-point lubrication, which have goodeffect with low noise The structure has so good rigidity that it can bear heavy cutting work load, And it uses carbide cutting tools to make high speed cutting.
Specification Parameter

Item	X6232A	XQ6226B
Head movement	±360°	±360°
Spindle speeds	(11steps)35-1600 rpm	(11steps)45-1660 rpm
Table size	1370*320 mm	1200*280 mm/1270*280 mm
Table travel(Horizontal/Cross/Vertical)	750/320/400 mm	600/300/400 mm 700/300/400 mm
Feeding range of longitudinal cross travel	22-555 mm/min	24-402 mm/min
XY-axis Rapid feed speed	1080 mm/min	980 mm/min
Z-axis Rapid feed speed	590 mm/min	422 mm/min
Z-axis motor power	750 W	750 W
Max. weight of workpiece	300kg	200 kg
T-slot Number/width/distance	3/14mm/70 mm	3/14mm/60 mm
Horse power ioe main motor	2.2 kw(H)	2.2 kw(H)
X,Y axis driving motor	750 W	750 W
Overall dimension	1700*1560*1730 mm	1655*1500*1730 mm
Packing size	1680*1600*2250 mm(Single) 2300*1600*2250 mm(double)	1680*1600*2250 mm(Single) 2300*1600*2250 mm(double)
N.W/G.W	1450/1550kg(2900/3100kg)	1300/1400 kg(2600/2800 kg)

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.

Exhibition Photos
Certificate
Packing&Shipping
FAQ

---
