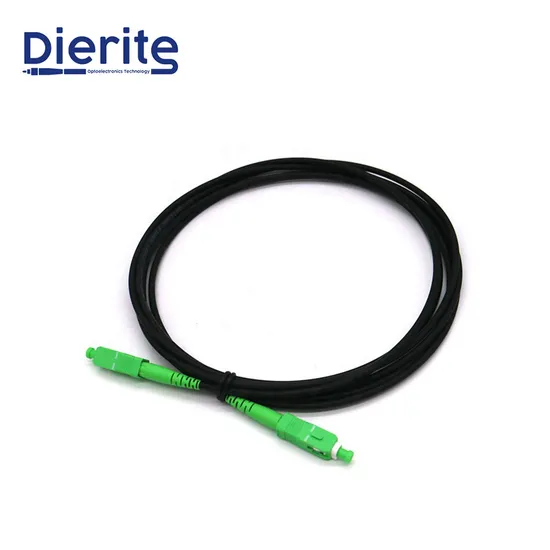

Sc APC Upc Durable FTTH Bow Type Drop Fiber Optic Patch Cord

Product Description

Product Parameters
Technical parameters

Characteristic	Item	Test condition	Single mode fiber	Multimode Fiber
Optical property	Insertion Loss (dB)	1310nm	<0.3dB	-
		1550nm
	Return Loss (dB)	1310nm	-	>45dB
		1550nm
Mechanical test	Vibration test	10-60Hz, 1mm full amplitude	△IL<0.2dB	△RL<5dB
	Tensile strength	>50N	△IL<0.2dB	△RL<5dB
Environmental property	High temperature test	+85°C 96hs	△IL<0.2dB	△RL<5dB
	Cryogenic test	-40°C, 96hs	△IL<0.2dB	△RL<5dB
	Damp heat test	+40°C,90-95%RH,96hs	△IL<0.2dB	△RL<5dB

Ordering information

Cable dimension		2.0*3.0mm/2.0*5.0mm/or customer specified
Cable length		1m,3m,5m,15m,25m,30m or customer specified
Fiber type		B1.3=G652D, B6A1=G657A1, B6A2=G657A2, A1=50/125, A1b=62.5/125, OM3=Maxband*150, OM3=Maxband*300, OM4=Maxband*550, OM5= Maxband*550
Drop cable structure		GJXH,GJXFH, GJYXCH,GJYXFCH
Fiber count		1-2
Fiber color		Refer to Chromatogram
Outer jacket material		LSZH
Outer jacket color		Black, white or refer to Chromatogram
Connector A side	Connector type	LC, SC, ST, FC
	Ferrule type	UPC,APC
Connector B side	Connector type	LC,SC,ST,FC
	Ferrule type	UPC,APC

Product Description
Product profile
The Pre-terminated bow type drop optical cable is our company's optical fiber movable connection device specially designed for fiber to the home (FTTH). It adopts the form of factory pre- terminated and provides an excellent alternative solution for the connection of the drop cable.
Product feature
•Low insertion loss, high return loss. •Good versatility and interchangeability stable and reliable connection, high repeatability.
•Outstanding tensile performance and convenient construction.
•Fully compatible with ordinary optical fiber connectors.
Application
•Use of optical fiber communication in harsh outdoor environment.
•Optical fiber to the home (FTTH) ODN system.
•Introduce connection from outdoor to indoor equipment.

No.	1	2	3	4	5	6
Color	Blue	Orange	Green	Brown	Gray	White
No.	7	8	9	10	11	12
Color	Red	Black	Yellow	Violet	Pink	Aqua

Company Profile

Jiangsu Dierite Optoelectronics Technology Co., Ltd. is a professional optical fiber cable manufacturer with own R&D center; marketing center and production base, located in Changzhou Jiangsu China, close to Shanghai and Ningbo port. Our company is committed to provide first-class solutions and OEM services for operaton system integrators and Integrated wiring provider Products cover indoor and outdoor fiber optic cable, fiber optic patch cord, PLC splitter; adaptecattenuatocetc.
Dierite was established in 2010, now our workshop area is about 5000 square meters, and has more than 150 workers. We are also a national high-tech enterprises with ISO 9001,CE/RoHS and many Utility Model Patent Certificates. Our factory controls the quality constantly and strictly in order to give the best products to the users.
Products have been widely used in telecommunications, broadband, and network industry and are exported to Asia, North America, South America, Europe and other places. As an original manufacturer; we will accelerate the development of the global 5G era with the most stringent quality and the most competitive price.

---
