11kv 24kv 33kv 36kv Porcelain Fuse Cut out Electrical Drop out Fuse Cutout Switch for Distribution Power Lines Polymer Fuse Cut out with Fuse Holder Good Price

Product Description

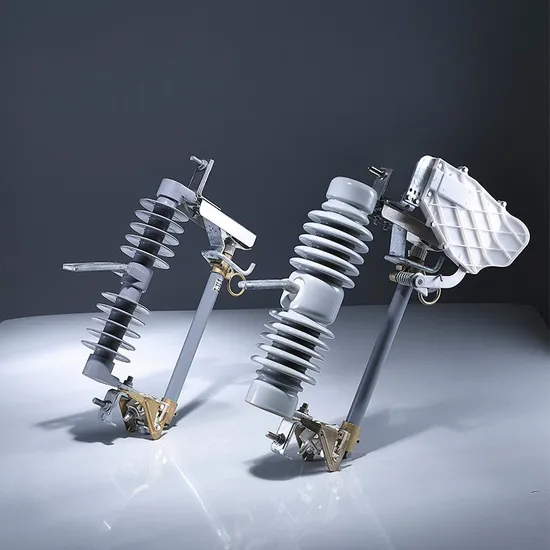

Porcelain Polymer Electrical Drop Out Fuse Cutout for Distribution Power Lines
High voltage fuse cutout is used in primary overhead feeder lines and taps to protect distribution transformers from short-circuits and overloads. When the current exceeds a given value for a certain time, the fuse will melt, and the switch mechanism to visibly open, disconnecting transformer from the line. It has the characteristics of economy, convenient operation, and strong adaptability to outdoor environments. With function of an isolating switch, cutouts create a safe working environment for power line and equipment in the maintenance section.
Service Conditions Altitude: <1000m above sea level
Temperature: -40ºC ~+40ºC
Relative humidity: the daily average value is not more than 95%, the monthly average value is not more than 90%
The installation site should be free from fire, explosion hazard, chemical corrosion and severe vibration.
Mounting Arrangement
The cutout will be provided with a suitable arrangement for mounting, an angle of 15° to 20° from vertical. The cutout can be mounted on either steel cross-arm or poles. There is a hole in the mounting bracket to allow the cutout to be fixed by means of a bolt vertically through the cross-arm with its center line.
Packing
Normal packing will be carton+ pallet. Pallets securing your primary packaging (and your product) in a stack to facilitate movement and storage, it provide additional protection. Special packaging arrangements are available upon user request.

Type	Rated voltage (KV)	Rated current (A)	Breaking current (A)	Impulse voltage (BIL)	Power frequency withstand voltage	Leakage distance (MM)
YNC1-12/100(200)	11-15	100(200)	8000(10000)	110	40	250
YNC1-15/100(200)	15-27	100(200)	8000(10000)	125	45	372
YNC1-24/100(200)	24-27	100(200)	8000(10000)	150	65	520
YNC1-30/100(200)	27-38	100(200)	8000(10000)	170	70	660
HYNC1W-12/100(200)	11-15	100(200)	8000(10000)	110	45	380
HYNC1W-24/100(200)	15-27	100(200)	8000(10000)	150	65	550
HYNC1W-30/100(200)	27-33	100(200)	8000(10000)	170	70	720
HYNC1W-33/100(200)	33-36	100(200)	8000(10000)	170	70	900
HYNC1W-36/100(200)	33-38	100(200)	8000(10000)	200	70	1080

Yuanneng Power was established in 2007 year which located in China Electric Capital-, Yueqing city. The corporation is committed to providing services for power infrastructure, including generation, transmission and distribution systems. As a modern high technology enterprise, Yuanneng successfully integrate production, development, sales and service together in the industry. The business scope include polymer insulator, fuse cutout, surge arrester, disconnect switch, and supporting power fitting products etc.
In order to adapt to the development of globalization and occupy a favorable position in the changing international market, yuanneng production conform to different requirements in different regions and markets, such as IEC, ANSI, IEEE, and GB standard. Products manufactured by us have been qualified by Xi'an High Voltage Apparatus Research Institute Co., Ltd (XIHARI), National Insulator & Lightning Arrester Quality Supervision Inspection Center, State Grid Electric Power Science Academy Quality Inspection Test Center etc.
By relying on Ningbo Port's and Shanghai Port's fast and convenient
shipment ability, yuanneng successfully sells products to different countries. Present annual production capacity can reach 500,000pcs polymer insulator, 500,000pcs lightning arrester, 350,000pcs dropout fuse cutout, 250,000pcs disconnect switch. That is an important point for us to maintain a competitive advantage and be strong support for our clients.
Yuanneng Power , will, as always, adhere to the development idea of" Human-oriented, Credibility-based ". We sincerely looking forward to working with you. Connect electricity connect the world.

---
