Factory Fiber Cotton Non Woven Carding Machine for Nonwoven Felt

Product Description

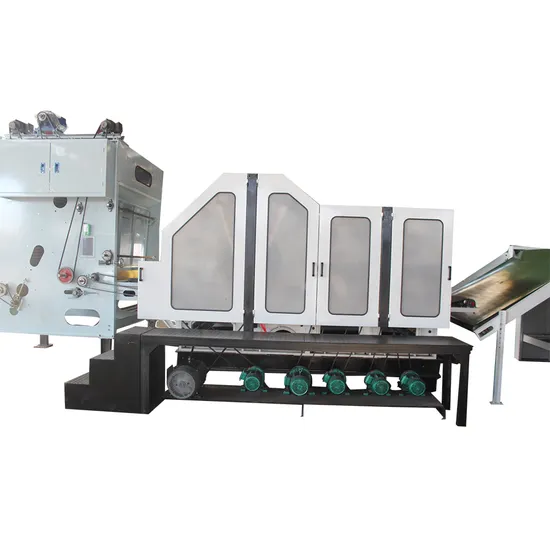

Carding Machine
Related Products:
Usage and Features
-Carding machine is mainly used in Non-woven production line and cannot work alone.They can convent the fleeciness textile fiber into Acupuncture cotton,high-density and high-spring such as Thermal insulation blanket,Greenhouses quilt raw materials,Shoes materials,Mattresses,Sofa cushion,Car mats,Chemical products and Non-woven fabrics for engineering etc,through Carding process,Spreading process,Acupuncture process,Strengthening process.
-Suitable fiber: chemical fiber, such as PET, PP specification: 1.5 ~ 6 d length of 31 ~ 51 mm polyester staple fiber and ES low melting point fiber, glass fiber, aramid fiber, etc

NO	ITEM	DESCRIPTION
1	Model	GMCD2-1500×Ф1230
2	Raw materials work on	Processing of raw materials from feeding machine, the output fiber layer
3	Working width	1500 mm
4	Production capacity	220 kg/h(Reference 6 d first-grade product chemical fiber)
5	Fiber raw materials requirements	3~15D×38~65mm
6	The speed of the output fiber layer	≤40m/min
7	Total power	18.7KW
8	Main body	High quality castings (HT200), are subject to high temperature stress after processing and precision machining with a mix of profile stays
9	Feeding roller	With a pressure roller feeding uniformity.Feeding roller: 4sets , φ65mm
10	Metal detectors	Equipped with metal detectors, feedback and control power and warning
11	Diameter of Cylinder &doffer &mixed and disorderly roller	φ1230 mm, double doffer diameterφ492 mm, mixed and disorderly roller diameter: φ295 mm
12	No of groups	There are 5 carding working groups, so can get a very good carding effect
13	Dust collection points	There are 4 dust places
14	Working shield	Working shield with transparent organic glass, a mechanical rotation can be observed during it running
15	Power	11KW ,for doffer: both 2.2KW, Fan 4KW all by inverter

Our Company:
Gaomi Rongda Machinery Co.,Ltd. Was established in 1999,Located in Gaomi,Shandong province,which is near to Qingdao sea port,super geographic location for transportation.
We company has been engaged in the field of textile waste recycling and processing of mechanical processing and manufacturing.Mainly produce Textile waste recycling machinery line,which include opening machine and cleaning machine,Textile waste cutting machine,Baling machine,Nov woven Fabric Making Machine,Needle punching machine,Quilting machine and Spare parts.
Our Factory:
Our Service:
1.We have After-sale department,every client can get a timely feedback when they have any trouble about our machine.
2.We have installation team,if you need,we will provide installation service.
3.Our equipment warranty period is 1 years,within this time,we will provide free maintenance.
4.If you have any other question or demand,please feel free to contact our businessmen,they will reply you within 8 hours.

---
