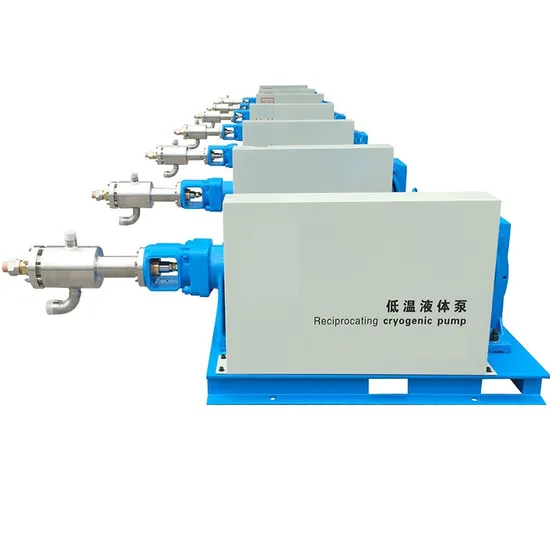

Cryogenic Liquid Cylinder Filling Pump (Svnb100-200/200)

US$1,000.00-5,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SVNB100-200/200
Pressure Medium
Cryogenic Liquid Gas
Type
Handheld
Position of Pump Shaft
Horizontal
Certification
ISO
Hs
8413810090
Transport Package
Carton/Plywood
Specification
CE GS
Trademark
Toplong compressors
Origin
China
HS Code
8413810090
Production Capacity
10000PCS/Month

Product Description

Cylinder Filling Pump
Liquids Pumped
LO2, LN2, LAR, LNG
Technical Parameters
Optional Configuration
Frequency converter
Overpressure interlocking device
Safe valve/Cryogenic check valve
Temperature interlocking device of outlet
Temperature interlocking device inside pump
Featuring
Classic design, stable performance, service life of product can last as long 20 years
Vacuum jacketed pump head with 10-5 torr vacuum degree and low cold loss
Reliable sealing effect, filling service life is as many as 1500, 000 cylinder times.
Service life of piston ring is as many as 300, 000 cylinder times.
Convenient reparation, regularly Only 2 hours will be enough
Can be kept functioning continuously for 24 hours
Model Type Flow Range L/h Inlet Pressure Mpa
Max Pressure Mpa
SVOC30-80/165
SVNB50-150/165
SVNB100-450/165
SVMB300-600/165
SVMA400-800/165
Single
Horizontal
Piston
30-80
50-150
100-450
300-600
400-800
0.02-1.6 16.5
DVNA400-1000/165
DVMB600-1200/165
DVMA800-1600/165
Double\
Horizontal
Piston
400-1000
600-1200
800-1600
0.02-1.6 16.5
SVNB100-200/200
SVNB200-450/200
SVMB300-600/200
Single\
Horizontal
Piston
100-200
200-450
300-600
0.02-1.6 20.0
