High Quality Automatic Stainless Steel Pipe Cutter Cutting and Beveling Machine

Product Description

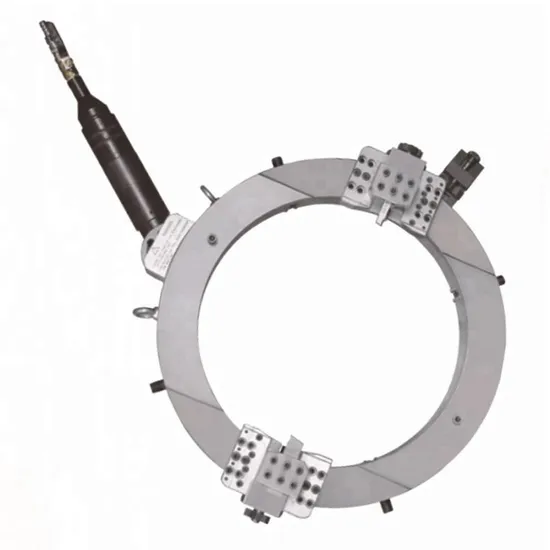

Split valve cutting and beveling machine ----this series machine is ideal for all types of pipe cutting, beveling, and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single cut/bevel, single point, counterbore, and flange facing operations, as well as weld end preparation on the open-ended pipe. Ranging from 1 to 56 inches O.D. (DN 25-1430mm), on most wall thicknesses and materials.
External clamp pipe cutting and beveling machine, the body can be divided into two petals, and installed on the pipe spindle for processing. It is suitable for pipe cutting, beveling, boring inner holes, flange end face processing, outer circle processing, etc. The processing bevel angle can be selected at will, and the tool holder can move automatically.
Different driving methods, it is divided into a small number: electric type, hydraulic drive, and pneumatic, which convert different pipe diameter requirements. Extensive replacement of oil, petrochemical, beer, beverage and dairy products, pharmaceutical, metallurgy, water treatment, shipbuilding, electric power, and other industries after cutting, and directly welding; at the same time, non-standard specifications can be customized according to customer needs, cutting non-standard grooves
The machine body adopts the advanced forging process and heat treatment process of the Yangtze River Delta to ensure the strength and hardness of the machine body. At the same time, the precision turning CNC lathe is used to ensure processing accuracy. Product Features
· Split frame
The machine can be split to mount around the outside diameter of the in-line pipe
· Cut or Cut/Bevel simultaneously
Cuts and bevels simultaneously leave a clean precision prep ready for welding
· Cold cut/Bevel
Hot torch cutting requires grinding and produces an undesirable heat-affected zone
Cold cutting/beveling improves safety, and can't affect pipe material
· Automatic Feed
Automatic Working, High efficiency, Decreased manual cost
· Variety Driven Ways
Electric Driven; Pneumatic Driven; Hydraulic Driven(Can be chosen).
Applicable Environment
· Engineering case
· Site construction of high-sulfur pipelines
· On-site construction of TUHA Oil Field
· Natural gas storage pipeline project
· PetroChina Pipeline Project
· China-Russia pipeline project
· Inspection and repair of pipelines in large power plants
· Emergency repair of nuclear industry equipment
· Project of west gas transporting to east China

Product Parameters
Product working information

Electric-Driven OCE SERIES
Model	OCE-89	OCE-168	OCE-230	OCE-275	OCE-305	OCE-325	OCE-377	OCE-426	OCE-457	OCE-508	OCE-560	OCE-610	OCE-630	OCE-660	OCE-715	OCE-762	OCE-830	OCE-914	OCE-1066	OCE-1230	OCE-1430
Motor Power	1500W-2000W(OCM 2400W)
Voltage	220-240V
Frequency	50 / 60 HZ
Working Current	6A
Max Wall Thickness	≤30mm ( standard tool slide )
Working Range in mm(ID-OD)	25-89	50-168	80-230	125-275	150-305	168-325	219-377	273-426	300-457	355-508	400-560	457-610	480-630	508-660	560-715	600-762	600-830	762-914	914-1066	1066-1230	1230-1430
Working Range in inch (ID-OD)	1-3	2-6	3-8	5-10	6-10	6-12	8-14	10-16	12-18	14-20	16-22	18-24	20-24	20-26	22-28	24-30	26-32	30-36	36-42	42-48	48-56
Rotate Speed(r/min)	42	22	15	14	13	13	12	12	12	12	12	11	11	11	11	11	10	10	10	10	8
Pneumatic-Driven OCP SERIES
Model	OCP-89	OCP-168	OCP-230	OCP-275	OCE-305	OCP-325	OCP-377	OCP-426	OCP-457	OCP-508	OCE-560	OCP-610	OCE-630	OCE-660	OCE-715	OCP-762	OCP-830	OCP-914	OCP-1066	OCP-1230	OCE-1430
Air Pressure	0.8-1.0Mpa ( Tested at the entrance to the motor )
Air Consumption	1500-2000L/min
Max Wall Thickness	≤30mm ( standard tool slide )
Working Range in mm(ID-OD)	25-89	50-168	80-230	125-275	150-305	168-325	219-377	273-426	300-457	355-508	400-560	457-610	480-630	508-660	560-715	600-762	600-830	762-914	914-1066	1066-1230	1230-1430
Working Range in inch (ID-OD)	1-3	2-6	3-8	5-10	6-10	6-12	8-14	10-16	12-18	14-20	16-22	18-24	20-24	20-26	22-28	24-30	26-32	30-36	36-42	42-48	48-56
Rotate Speed(r/min)	42	22	15	14	13	13	12	12	12	12	12	11	11	11	11	11	10	10	10	10	8
Hydraulic-Driven OCH SERIES
Model	OCH-89	OCH -168	OCH -230	OCH -275	OCE-305	OCH -325	OCH -377	OCH -426	OCH -457	OCH -508	OCE-560	OCH -610	OCE-630	OCE-660	OCE-715	OCH -762	OCH -830	OCH -914	OCH -1066	OCH -1230	OCE-1430
Power Supply	380-415 V 3ph 50/60HZ
Power	12.5 Mpa 2-60L/min
Max Wall Thickness	≤30mm ( standard tool slide )
Working Range in mm(ID-OD)	25-89	50-168	80-230	125-275	150-305	168-325	219-377	273-426	300-457	355-508	400-560	457-610	480-630	508-660	560-715	600-762	600-830	762-914	914-1066	1066-1230	1230-1430
Working Range in inch (ID-OD)	1-3	2-6	3-8	5-10	6-10	6-12	8-14	10-16	12-18	14-20	16-22	18-24	20-24	20-26	22-28	24-30	26-32	30-36	36-42	42-48	48-56
Rotate Speed(r/min)	42	22	15	14	13	13	12	12	12	12	12	11	11	11	11	11	10	10	10	10	8

Weight and Packing info
Detailed Photos
Detailed photos of products for OCE, OCP, and OCH
Photos about Beveling Tool Bits
Photos about product application, packing, and customer feedback


Company Profile

Henan E-work Industrial Equipment Co., Ltd. is a professional company dedicated to the R&D, production, and sales of piping machines and tools related to pipes.
In line with the business tenet of "piping solutions expert" and the mission of "making work easy and efficient", we have independently developed and produced a series of products that customers love. Our product series mainly include pipe cutting machines, pipe-beveling machines, pipe-bending machines, pipe-threading machines, HDPE pipe machines, and related tools. These products are widely used for stainless pipe, steel pipe, galvanized pipe, mild steel, and plastic pipes.Our company not only has a professional and skilled workforce but also has established a complete and complete quality management system. We are committed to providing customers with world-class products and look forward to sincere and friendly cooperation with our customers to have a good business together.

---
